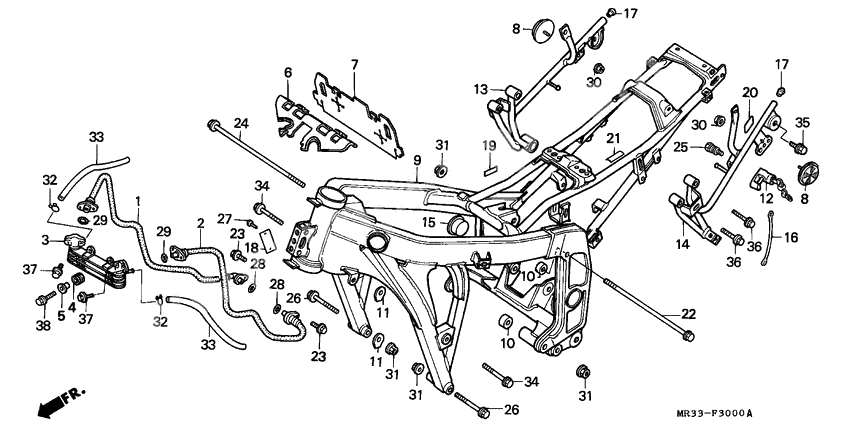

Frame body/oil cooler
Frame body/oil cooler
Pipe, r. oil (Ref #1)
1
Part #15510-KT8-710
Pipe, l. oil (Ref #2)
2
Part #15515-KT8-710
Cooler, oil (Ref #3)
3
Part #15600-ML0-701
Rubber, radiator mounting (Ref #4)
4
Part #19051-KA3-830
COLLAR (Ref #5)
5
Part #19052-KA3-830
Guard a, heat (Ref #6)
6
Part #19125-MN4-000
Guard b, heat (Ref #7)
7
Part #19126-MN4-000
Reflector, fr. (Ref #8)
8
Part #33742-HB9-641
Reflector, fr. (Ref #8)
8
Part #33742-HB9-641
Reflector, fr. (Ref #8)
8
Part #33742-HB9-641
Reflector, fr. (Ref #8)
8
Part #33742-HB9-641
Frame body comp (Ref #9)
9
Part #50100-MT6-601
Collar, rr. eng hgr (Ref #10)
10
Part #50355-KT8-000
Collar, rr. eng hgr (Ref #10)
10
Part #50355-KT8-000
Collar, rr. eng hgr (Ref #10)
10
Part #50355-KT8-000
Collar, rr. eng hgr (Ref #10)
10
Part #50355-KT8-000
Collar, fr. eng hgr (Ref #11)
11
Part #50358-MN4-000
Collar, fr. eng hgr (Ref #11)
11
Part #50358-MN4-000
Collar, fr. eng hgr (Ref #11)
11
Part #50358-MN4-000
Collar, fr. eng hgr (Ref #11)
11
Part #50358-MN4-000
Holder assy., helmet (Ref #12)
12
Part #50710-GB4-007
Holder, r (Ref #13)
13
Part #50750-MT6-870
Holder, l (Ref #14)
14
Part #50760-MT6-870
Cap, cross member side (Ref #15)
15
Part #52161-051-000
Cable (Ref #16)
16
Part #77236-KM4-000
Cap, rr. bumper (Ref #17)
17
Part #84103-443-611
Cap, rr. bumper (Ref #17)
17
Part #84103-443-611
Cap, rr. bumper (Ref #17)
17
Part #84103-443-611
Cap, rr. bumper (Ref #17)
17
Part #84103-443-611
PLATE (Ref #18)
18
Part #87501-MR3-880
Label, reserve tank (Ref #19)
19
Part #87507-MB4-670
Label, helmet holder (Ref #20)
20
Part #87511-323-670
LABEL (Ref #21)
21
Part #87565-MR3-900ZD
LABEL (Ref #21)
21
Part #87565-MR3-900ZC
LABEL (Ref #21)
21
Part #87565-MR3-900ZA
LABEL (Ref #21)
21
Part #87565-MR3-900ZB
Bolt, flg (10x291) (Ref #22)
22
Part #90100-KM4-000
Болт (Ref #23)
23
Part #90103-MJ1-010
Болт (Ref #23)
23
Part #90103-MJ1-010
Болт (Ref #23)
23
Part #90103-MJ1-010
Болт (Ref #23)
23
Part #90103-MJ1-010
Bolt, engine hanger (Ref #24)
24
Part #90106-MN4-000
Bolt, special (6x10) (Ref #25)
25
Part #90107-KM9-000
Болт (Ref #26)
26
Part #95801-1008500
Болт (Ref #26)
26
Part #95801-1008500
Болт (Ref #26)
26
Part #95801-1008500
Болт (Ref #26)
26
Part #95801-1008500
Голвка вилта (Ref #27)
27
Part #90841-001-000
Прокладка (Ref #28)
28
Part #91255-MJ1-000
Прокладка (Ref #28)
28
Part #91255-MJ1-000
Прокладка (Ref #28)
28
Part #91255-MJ1-000
Прокладка (Ref #28)
28
Part #91255-MJ1-000
O-ring, 10x2.6 (arai) (Ref #29)
29
Part #91314-ME5-003
O-ring, 10x2.6 (arai) (Ref #29)
29
Part #91314-ME5-003
O-ring, 10x2.6 (arai) (Ref #29)
29
Part #91314-ME5-003
O-ring, 10x2.6 (arai) (Ref #29)
29
Part #91314-ME5-003
Гайка (Ref #30)
30
Part #94050-06000
Гайка (Ref #30)
30
Part #94050-06000
Гайка (Ref #30)
30
Part #94050-06000
Гайка (Ref #30)
30
Part #94050-06000
CLIP (Ref #32)
32
Part #95002-70000
CLIP (Ref #32)
32
Part #95002-70000
CLIP (Ref #32)
32
Part #95002-70000
CLIP (Ref #32)
32
Part #95002-70000
Tube,vinyl,7x11x1 (Ref #33)
33
Part #95003-190-123-1
Tube,vinyl,7x11x1 (Ref #33)
33
Part #95003-190-123-1
Tube,vinyl,7x11x1 (Ref #33)
33
Part #95003-190-123-1
Tube,vinyl,7x11x1 (Ref #33)
33
Part #95003-190-123-1
Bolt, flange, 10x60 (Ref #34)
34
Part #95701-1006000
Bolt, flange, 10x60 (Ref #34)
34
Part #95701-1006000
Bolt, flange, 10x60 (Ref #34)
34
Part #95701-1006000
Bolt, flange, 10x60 (Ref #34)
34
Part #95701-1006000
Bolt, flange, 8x14 (Ref #35)
35
Part #95701-080-140-0
Bolt, flange, 8x35 (Ref #36)
36
Part #95801-0803500
Bolt, flange, 8x35 (Ref #36)
36
Part #95801-0803500
Bolt, flange, 8x35 (Ref #36)
36
Part #95801-0803500
Bolt, flange, 8x35 (Ref #36)
36
Part #95801-0803500
Bolt, flange, 6x22 (Ref #37)
37
Part #96001-0602200
Bolt, flange, 6x22 (Ref #37)
37
Part #96001-0602200
Bolt, flange, 6x22 (Ref #37)
37
Part #96001-0602200
Bolt, flange, 6x22 (Ref #37)
37
Part #96001-0602200
