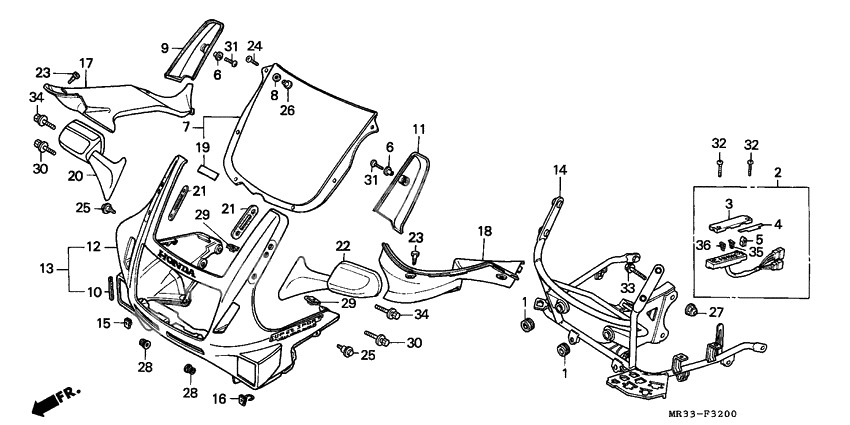

Upper cowling assy
Upper cowling assy
Rubber, radiator mounting (Ref #1)
1
Part #19051-KA4-000
Rubber, radiator mounting (Ref #1)
1
Part #19051-KA4-000
Rubber, radiator mounting (Ref #1)
1
Part #19051-KA4-000
Rubber, radiator mounting (Ref #1)
1
Part #19051-KA4-000
Box assy., fuse (Ref #2)
2
Part #38200-MN4-405
Cover, fuse (Ref #3)
3
Part #38201-KT8-003
Label, fuse (Ref #4)
4
Part #38215-MN4-670
Съёмник мини предохранитель (Ref #5)
5
Part #38235-SA5-004
COLLAR (Ref #6)
6
Part #61304-379-690
COLLAR (Ref #6)
6
Part #61304-379-690
COLLAR (Ref #6)
6
Part #61304-379-690
COLLAR (Ref #6)
6
Part #61304-379-690
SCREEN ASSY,WIND (Ref #7)
7
Part #64150-MT6-670
Rubber b, windscreen (Ref #8)
8
Part #64212-KM3-000
Cover, r. cowl stay (Ref #9)
9
Part #64215-MN4-000
CUSHION,RUBBER (Ref #10)
10
Part #64215-MT6-830
Cover, l. cowl stay (Ref #11)
11
Part #64216-MN4-000
Cowl *r167/type1* (Ref #13)
13
Part #64222-MT6-830ZA
Cow*nh193p/type4* (Ref #13)
13
Part #64222-MT6-830ZD
Cowl *nh1* (type2) (Ref #13)
13
Part #64222-MT6-830ZB
Cow*nh193p/type3* (Ref #13)
13
Part #64222-MT6-830ZC
Stay, cowl (upper) (Ref #14)
14
Part #64501-MN4-000
Nut, clip (6mm) (Ref #15)
15
Part #64527-KT8-710
Nut, clip (6mm) (Ref #16)
16
Part #64527-MN4-000
Panel*r167/type1* (Ref #17)
17
Part #64560-MT6-600ZA
Pan*nh193p/type4* (Ref #17)
17
Part #64560-MT6-600ZD
Panel set, r. *nh1* (Ref #17)
17
Part #64560-MT6-600ZB
Pan*nh193p/type3* (Ref #17)
17
Part #64560-MT6-600ZC
Pan*nh193p/type4* (Ref #18)
18
Part #64570-MT6-600ZD
Pan*nh193p/type3* (Ref #18)
18
Part #64570-MT6-600ZC
Panel set, l. *nh1* (Ref #18)
18
Part #64570-MT6-600ZB
Panel*r167/type1* (Ref #18)
18
Part #64570-MT6-600ZA
Label, windshield (Ref #19)
19
Part #87522-MT2-300
Mirror, r. *nh196* (Ref #20)
20
Part #88110-MN4-003ZC
Mirror, r. *nh1* (Ref #20)
20
Part #88110-MN4-003ZB
Mirror,r.ba*r167* (Ref #20)
20
Part #88110-MN4-003ZE
RUBBER (Ref #21)
21
Part #88112-MM5-000
RUBBER (Ref #21)
21
Part #88112-MM5-000
RUBBER (Ref #21)
21
Part #88112-MM5-000
RUBBER (Ref #21)
21
Part #88112-MM5-000
Mirror,l.ba*r167* (Ref #22)
22
Part #88120-MN4-003ZE
Mir, l. back *nh196* (Ref #22)
22
Part #88120-MN4-003ZC
Mir, l. back *nh1* (Ref #22)
22
Part #88120-MN4-003ZB
Screw, pan (5x14) (Ref #23)
23
Part #90107-MN4-000
Screw, pan (5x14) (Ref #23)
23
Part #90107-MN4-000
Screw, pan (5x14) (Ref #23)
23
Part #90107-MN4-000
Screw, pan (5x14) (Ref #23)
23
Part #90107-MN4-000
Болт (Ref #24)
24
Part #90111-MB6-000
Болт (Ref #25)
25
Part #90116-ME9-000
Болт (Ref #25)
25
Part #90116-ME9-000
Болт (Ref #25)
25
Part #90116-ME9-000
Болт (Ref #25)
25
Part #90116-ME9-000
Nut, screen setting (Ref #26)
26
Part #90202-MB6-000
Nut, flange (self-lock) (m8x1.25) (Ref #27)
27
Part #90309-428-731
Nut, insert (5x0.8) (Ref #28)
28
Part #90316-MJ1-000
Nut, insert (5x0.8) (Ref #28)
28
Part #90316-MJ1-000
Nut, insert (5x0.8) (Ref #28)
28
Part #90316-MJ1-000
Nut, insert (5x0.8) (Ref #28)
28
Part #90316-MJ1-000
Nut, spring (5mm) (Ref #29)
29
Part #90322-MM5-000
Nut, spring (5mm) (Ref #29)
29
Part #90322-MM5-000
Nut, spring (5mm) (Ref #29)
29
Part #90322-MM5-000
Nut, spring (5mm) (Ref #29)
29
Part #90322-MM5-000
Bolt-washer (Ref #30)
30
Part #93404-060-200-8
Bolt-washer (Ref #30)
30
Part #93404-060-200-8
Bolt-washer (Ref #30)
30
Part #93404-060-200-8
Bolt-washer (Ref #30)
30
Part #93404-060-200-8
Screw, pan (5x14) (Ref #31)
31
Part #93500-050140G
Screw, pan (5x14) (Ref #31)
31
Part #93500-050140G
Screw, pan (5x14) (Ref #31)
31
Part #93500-050140G
Screw, pan (5x14) (Ref #31)
31
Part #93500-050140G
BOLT (Ref #33)
33
Part #95801-080-400-8
BOLT (Ref #34)
34
Part #96001-060-200-0
BOLT (Ref #34)
34
Part #96001-060-200-0
BOLT (Ref #34)
34
Part #96001-060-200-0
BOLT (Ref #34)
34
Part #96001-060-200-0
Fuse (Ref #35)
35
Part #98200-31000
Fuse (Ref #36)
36
Part #98200-31500
