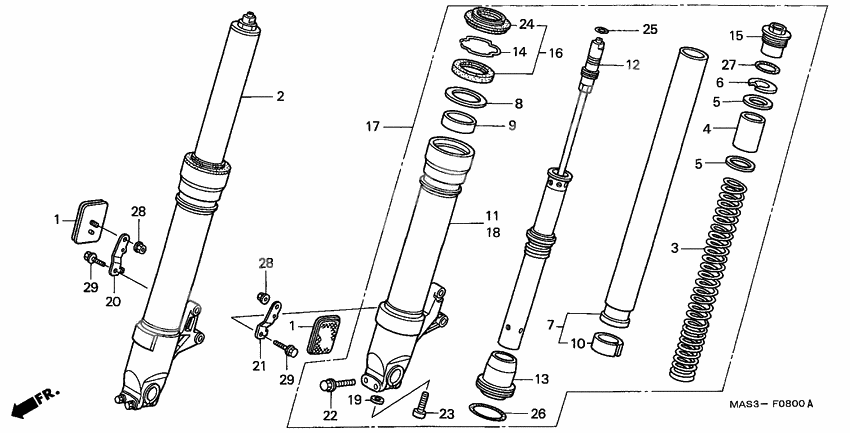

Front
Front
Reflector, fr. (Ref #1)
1
Part #33741-MB2-671
Reflector, fr. (Ref #1)
1
Part #33741-MB2-671
Reflector, fr. (Ref #1)
1
Part #33741-MB2-671
Reflector, fr. (Ref #1)
1
Part #33741-MB2-671
Fork assy., r. fr. (Ref #2)
2
Part #51400-MAS-A01
Spring, fr. fork (Ref #3)
3
Part #51401-MAS-E01
Collar, spring (Ref #4)
4
Part #51403-MAE-003
Plate, spring joint (Ref #5)
5
Part #51403-MW0-003
Plate, spring joint (Ref #5)
5
Part #51403-MW0-003
Plate, spring joint (Ref #5)
5
Part #51403-MW0-003
Plate, spring joint (Ref #5)
5
Part #51403-MW0-003
Пружина (Ref #6)
6
Part #51404-MR7-003
Pipe, fr. fork (Ref #7)
7
Part #51410-MAS-E01
Ring, back-up (Ref #8)
8
Part #51412-KZ3-003
Bush, guide (Ref #9)
9
Part #51414-KAE-771
Bush, slider (Ref #10)
10
Part #51415-KAE-771
Case, r. (lower) (Ref #11)
11
Part #51420-MAS-A01
Damper, fr. (Ref #12)
12
Part #51430-MAS-E01
Piece, oil lock (Ref #13)
13
Part #51432-MAS-E01
RING (Ref #14)
14
Part #51447-KZ3-003
Bolt, fr. fork (Ref #15)
15
Part #51454-MW0-003
Seal set, fr. fork (Ref #16)
16
Part #51490-MW0-003
Fork assy., l. fr. (Ref #17)
17
Part #51500-MAS-A01
Case, l. (lower) (Ref #18)
18
Part #51520-MAS-A01
Шайба (Ref #19)
19
Part #52442-KA3-711
Stay, r. fr. (Ref #20)
20
Part #61104-MW0-670
Stay, l. fr. (Ref #21)
21
Part #61105-MW0-670
Болт (Ref #22)
22
Part #90109-MR7-000
Bolt, socket (10x35) (Ref #23)
23
Part #90126-MR7-003
DUST SEAL (Ref #24)
24
Part #91254-KZ3-003
Прокладка (Ref #25)
25
Part #91311-PH7-003
Прокладка (Ref #26)
26
Part #91351-MAE-003
Прокладка (Ref #27)
27
Part #91356-MW0-003
Гайка (Ref #28)
28
Part #94050-05070
Гайка (Ref #28)
28
Part #94050-05070
Гайка (Ref #28)
28
Part #94050-05070
Гайка (Ref #28)
28
Part #94050-05070
Болт (Ref #29)
29
Part #96300-0601407
Болт (Ref #29)
29
Part #96300-0601407
Болт (Ref #29)
29
Part #96300-0601407
Болт (Ref #29)
29
Part #96300-0601407
