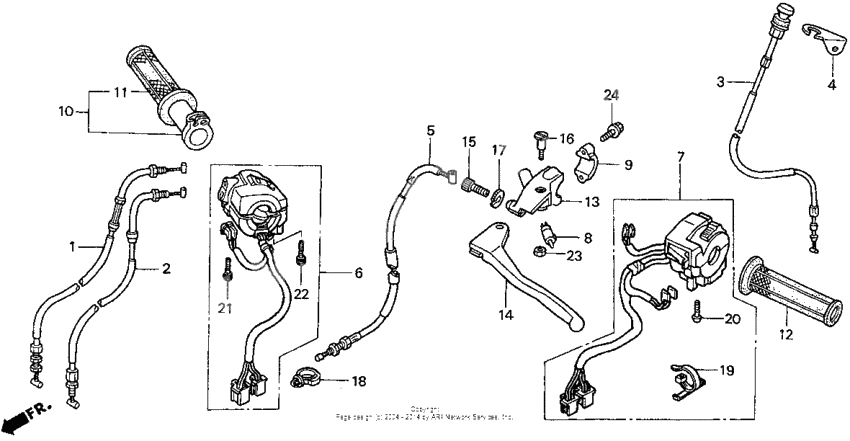

Cable + switch
Cable + switch
Cable a, throttle (Ref #1)
1
Part #17910-MAS-000
Cable b, throttle (Ref #2)
2
Part #17920-MW0-000
Cable, choke (Ref #3)
3
Part #17950-MAS-E00
Stay, choke cable (Ref #4)
4
Part #17951-MV4-000
Cable, clutch (Ref #5)
5
Part #22870-MAS-E00
Switch, starter stop (Ref #6)
6
Part #35013-MAS-731
Switch, turn signal (Ref #7)
7
Part #35020-MAS-670
Switch, fr. lever (Ref #8)
8
Part #35330-413-003
HOLDER (Ref #9)
9
Part #45517-166-006
Grip, r. (Ref #10)
10
Part #53140-KY6-000
Grip, r. handle (Ref #11)
11
Part #53165-KT8-710
Grip, l. handle (Ref #12)
12
Part #53166-KT8-710
Bracket, handlebar (Ref #13)
13
Part #53172-KT8-710
Lever, l. handle (Ref #14)
14
Part #53178-KV3-000
Bolt, cable adj. (Ref #15)
15
Part #53192-268-000
Болт (Ref #16)
16
Part #90113-438-000
Nut, fixing (Ref #17)
17
Part #90321-MA6-750
BAND (Ref #19)
19
Part #91548-SA5-003
Болт (Ref #20)
20
Part #93500-050-200-A
Screw-washer (5x20) (Ref #21)
21
Part #93892-0502007
Screw-washer (5x25) (Ref #22)
22
Part #93892-0502507
Гайка (Ref #23)
23
Part #94001-062-000-S
Болт (Ref #24)
24
Part #96001-0602207
