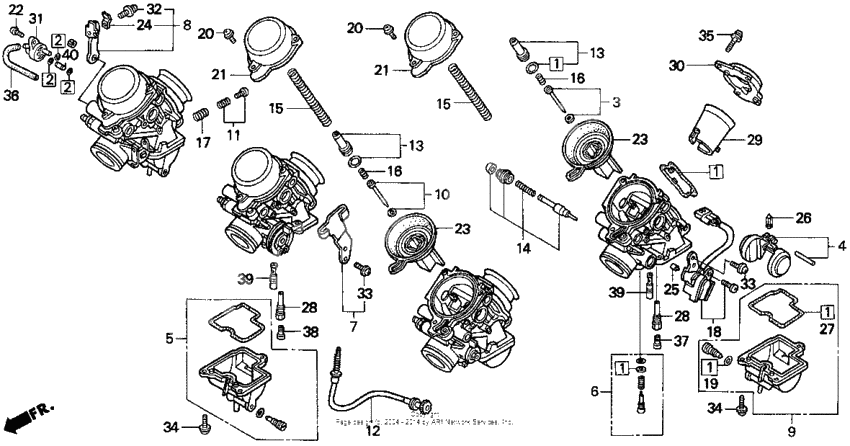

Carburetor components
Carburetor components
Needle set, jet (Ref #3)
3
Part #16027-MAS-620
FLOAT SET (Ref #4)
4
Part #16013-MAS-600
Chamber set, float (Ref #5)
5
Part #16023-MZ2-E00
Screw set (Ref #6)
6
Part #16016-MAS-670
Stay set, wire (Ref #7)
7
Part #16018-MZ1-790
Plate set, stay (Ref #8)
8
Part #16019-MAS-600
Chamber set (#3) (Ref #9)
9
Part #16043-MZ2-E00
Needle set, jet (Ref #10)
10
Part #16012-MAS-L00
Screw set (Ref #11)
11
Part #16028-MZ2-E00
Screw set (Ref #12)
12
Part #16029-MAS-600
Plate set, valve (Ref #13)
13
Part #16037-MZ2-E00
Plate set, valve (Ref #13)
13
Part #16037-MZ2-E00
Plate set, valve (Ref #13)
13
Part #16037-MZ2-E00
Plate set, valve (Ref #13)
13
Part #16037-MZ2-E00
Valve set, starter (Ref #14)
14
Part #16046-MZ2-E00
Пружина (Ref #15)
15
Part #16050-MW0-670
Пружина (Ref #15)
15
Part #16050-MW0-670
Пружина (Ref #15)
15
Part #16050-MW0-670
Пружина (Ref #15)
15
Part #16050-MW0-670
Пружина (Ref #16)
16
Part #16051-MV4-000
Пружина (Ref #16)
16
Part #16051-MV4-000
Пружина (Ref #16)
16
Part #16051-MV4-000
Пружина (Ref #16)
16
Part #16051-MV4-000
Пружина (Ref #17)
17
Part #16052-MB0-671
Spring, compression coil (Ref #17)
17
Part #16052-KG4-003
Sensor, throttle (Ref #18)
18
Part #16060-MAL-600
Прокладка (Ref #19)
19
Part #16075-GHB-640
Screw, pan (Ref #20)
20
Part #16080-MV4-000
Screw, pan (Ref #20)
20
Part #16080-MV4-000
Screw, pan (Ref #20)
20
Part #16080-MV4-000
Screw, pan (Ref #20)
20
Part #16080-MV4-000
Верх (Ref #21)
21
Part #16107-MW0-670
Верх (Ref #21)
21
Part #16107-MW0-670
Верх (Ref #21)
21
Part #16107-MW0-670
Верх (Ref #21)
21
Part #16107-MW0-670
Piston, vacuum (Ref #23)
23
Part #16111-MW0-670
Piston, vacuum (Ref #23)
23
Part #16111-MW0-670
Piston, vacuum (Ref #23)
23
Part #16111-MW0-670
Piston, vacuum (Ref #23)
23
Part #16111-MW0-670
Plate, stay (Ref #24)
24
Part #16119-MZ2-600
Joint, connector (Ref #25)
25
Part #16145-MZ2-780
Клапан (Ref #26)
26
Part #16155-MN9-004
Прокладка (Ref #27)
27
Part #16163-MZ5-920
Holder, needle jet (Ref #28)
28
Part #16165-MZ2-790
Holder, needle jet (Ref #28)
28
Part #16165-MZ2-790
Holder, needle jet (Ref #28)
28
Part #16165-MZ2-790
Holder, needle jet (Ref #28)
28
Part #16165-MZ2-790
Funnel, air (Ref #29)
29
Part #16141-MAS-E00
PLATE (Ref #30)
30
Part #16188-MW0-671
Screw-washer (Ref #32)
32
Part #93892-0401000
Screw-washer, 5x10 (Ref #33)
33
Part #93892-0501000
Screw-washer, 5x10 (Ref #33)
33
Part #93892-0501000
Screw-washer, 5x10 (Ref #33)
33
Part #93892-0501000
Screw-washer, 5x10 (Ref #33)
33
Part #93892-0501000
Screw-washer, 5x16 (Ref #34)
34
Part #93892-0501600
Screw-washer, 5x16 (Ref #34)
34
Part #93892-0501600
Screw-washer, 5x16 (Ref #34)
34
Part #93892-0501600
Screw-washer, 5x16 (Ref #34)
34
Part #93892-0501600
Screw-washer (4x14) (Ref #35)
35
Part #93893-040-140-7
Jet, main (#115) (Ref #37)
37
Part #99101-MAZ1150
JET (Ref #38)
38
Part #99101-GHB1180
Жиклер (Ref #39)
39
Part #99103-MT20400
Жиклер (Ref #39)
39
Part #99103-MT20400
Жиклер (Ref #39)
39
Part #99103-MT20400
Жиклер (Ref #39)
39
Part #99103-MT20400
-
-
