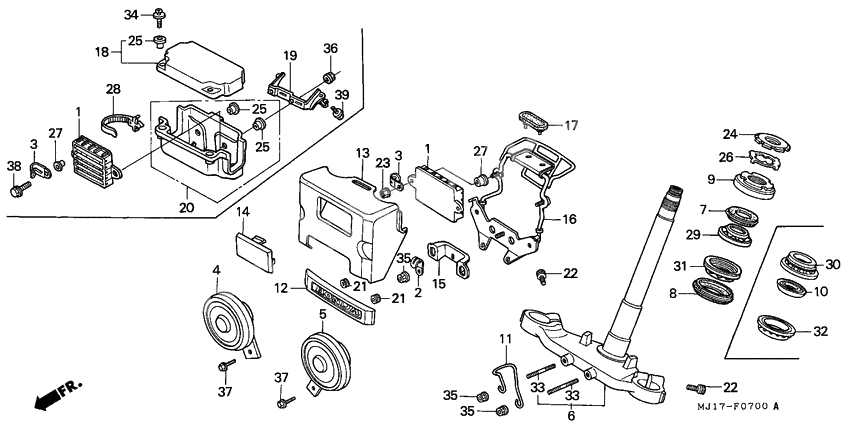

Steering stem
Steering stem
Multi-connector (Ref #1)
1
Part #32150-GE8-601
Multi-connector (Ref #1)
1
Part #32150-GE8-601
Multi-connector (Ref #1)
1
Part #32150-GE8-601
Multi-connector (Ref #1)
1
Part #32150-GE8-601
Clip,high cord (Ref #3)
3
Part #32810-413-000
Clip,high cord (Ref #3)
3
Part #32810-413-000
Clip,high cord (Ref #3)
3
Part #32810-413-000
Clip,high cord (Ref #3)
3
Part #32810-413-000
Stem comp *nh-0* (Ref #6)
6
Part #53200-MJ1-000ZA
DUST SEAL (Ref #7)
7
Part #53213-MB4-771
DUST SEAL (Ref #8)
8
Part #53214-371-010
Thread (Ref #9)
9
Part #53220-422-000
GUIDE,HARNESS (Ref #11)
11
Part #61316-MJ1-970
Cap,coupler box (Ref #18)
18
Part #62110-MJ1-970
Bracket,coupler b (Ref #19)
19
Part #62115-MJ1-970
Box,coupler (Ref #20)
20
Part #62120-MJ1-970
Bolt socket 10x30 (Ref #22)
22
Part #90152-MB2-000
Bolt socket 10x30 (Ref #22)
22
Part #90152-MB2-000
Bolt socket 10x30 (Ref #22)
22
Part #90152-MB2-000
Bolt socket 10x30 (Ref #22)
22
Part #90152-MB2-000
Thread (Ref #24)
24
Part #90302-425-830
Шайба, стопорная (Ref #26)
26
Part #90506-425-830
Washer, chain case setting (Ref #27)
27
Part #90522-028-000
Washer, chain case setting (Ref #27)
27
Part #90522-028-000
Washer, chain case setting (Ref #27)
27
Part #90522-028-000
Washer, chain case setting (Ref #27)
27
Part #90522-028-000
BAND (Ref #28)
28
Part #90676-692-000
Bearing, head pipe (Ref #29)
29
Part #91015-KT8-005
Bearing, head pipe (Ref #31)
31
Part #91016-KT8-005
BOLT (Ref #33)
33
Part #92900-06028-0B
BOLT (Ref #33)
33
Part #92900-06028-0B
BOLT (Ref #33)
33
Part #92900-06028-0B
BOLT (Ref #33)
33
Part #92900-06028-0B
Screw-washer (Ref #34)
34
Part #93891-060-120-7
Гайка (Ref #36)
36
Part #94050-06080
BOLT (Ref #38)
38
Part #95701-060-200-8
Bolt, flange, 8x12 (Ref #39)
39
Part #95701-0801200
-
3392700-06035-0B
Bolt, stud, 6x35
2Replaced by 92900-06028-0B Доступно: Нет в наличии
-
3995700-080-120-0
Bolt, flange, 8x12
2Replaced by 95701-0801200 Доступно: Нет в наличии
