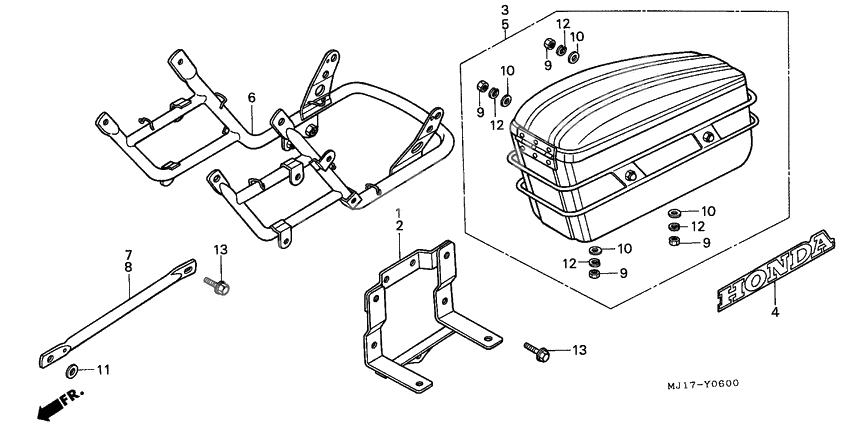

Side box/bumper 1
Side box/bumper 1
Brkt.,r side box (Ref #1)
1
Part #77300-MJ1-840
Brkt.,l side box (Ref #2)
2
Part #77400-MJ1-840
Box assy.,r*nh-0* (Ref #3)
3
Part #77500-426-841ZA
Mark,side box (Ref #4)
4
Part #77505-MJ1-840
Box assy.,l*nh-0* (Ref #5)
5
Part #77600-426-841ZA
Bumper,rr. (Ref #6)
6
Part #84101-MJ1-840
Stay,r.rr.bmpr (Ref #7)
7
Part #84102-MJ1-830
Stay,l.rr.bmpr. (Ref #8)
8
Part #84103-MJ1-830
Washer, plain, 10mm (Ref #11)
11
Part #9410310000
Bolt, flange, 8x16 (Ref #13)
13
Part #95701-0801600
Bolt, flange, 8x16 (Ref #13)
13
Part #95701-0801600
Bolt, flange, 8x16 (Ref #13)
13
Part #95701-0801600
Bolt, flange, 8x16 (Ref #13)
13
Part #95701-0801600
