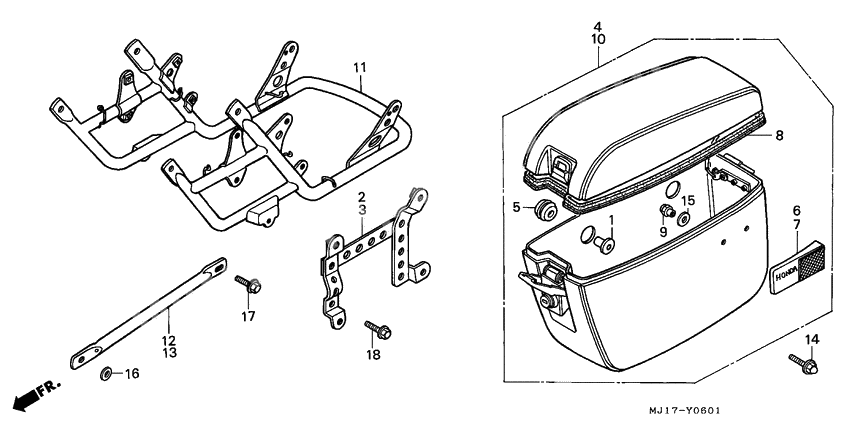

Side box/bumper 2
Side box/bumper 2
Collar, tank set (Ref #1)
1
Part #17618-371-000
Brkt,r.side box (Ref #2)
2
Part #77300-MJ1-860
Brkt,l.side box (Ref #3)
3
Part #77400-MJ1-860
Box assy,r *nh-0* (Ref #4)
4
Part #77500-MJ1-860ZA
Rubber,mounting (Ref #5)
5
Part #77513-425-840
Refl.,r.reflex (Ref #6)
6
Part #77514-425-840
Refl.,l.reflex (Ref #7)
7
Part #77515-425-840
Rubber,seal (Ref #8)
8
Part #77516-425-840
Nut,special 5mm (Ref #9)
9
Part #77517-425-840
Box assy,l *nh-0* (Ref #10)
10
Part #77600-MJ1-860ZA
Bumper,rr (Ref #11)
11
Part #84101-MJ1-860
Stay,r.rr.bmpr (Ref #12)
12
Part #84102-MJ1-830
Stay,l.rr.bmpr. (Ref #13)
13
Part #84103-MJ1-830
Bolt, cap, 8x25 (Ref #14)
14
Part #92501-08025-0A
Washer, plain, 6mm (Ref #15)
15
Part #9410106200
Washer, plain, 10mm (Ref #16)
16
Part #9410310000
Bolt, flange, 8x16 (Ref #17)
17
Part #95701-0801600
Bolt, flange, 8x20 (Ref #18)
18
Part #95701-080-200-0
