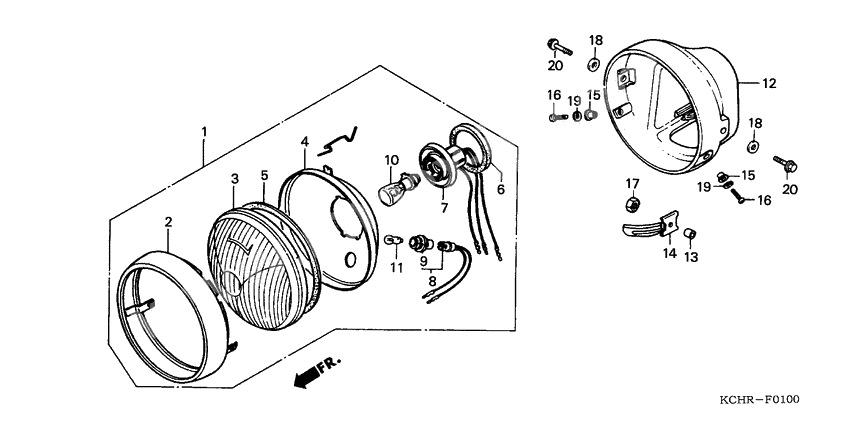

Phare
Phare
Light,head (Ref #1)
1
Part #33100-KE2-900
Rim,head light (Ref #2)
2
Part #33101-088-950
Lens head light (Ref #3)
3
Part #33103-070-000
Reflector head (Ref #4)
4
Part #33104-070-000
Packing head (Ref #5)
5
Part #33105-070-000
Gasket,head light (Ref #6)
6
Part #33109-567-003
Socket,hd/light (Ref #7)
7
Part #33130-KE2-900
Soc,position lamp (Ref #8)
8
Part #33140-167-003
Rubber, joint (Ref #9)
9
Part #33155-166-003
Bulb head light (Ref #10)
10
Part #34901-397-630
Bulb (Ref #11)
11
Part #34902-259-000
Case,hd/lt*nh-1* (Ref #12)
12
Part #61301-441-970ZA
Collar,light.case (Ref #13)
13
Part #61302-229-300
Clip,wire harness (Ref #14)
14
Part #61303-441-860
COLLAR (Ref #15)
15
Part #61304-379-690
COLLAR (Ref #15)
15
Part #61304-379-690
COLLAR (Ref #15)
15
Part #61304-379-690
COLLAR (Ref #15)
15
Part #61304-379-690
Болт (Ref #16)
16
Part #93500-050-160-G
Болт (Ref #16)
16
Part #93500-050-160-G
Болт (Ref #16)
16
Part #93500-050-160-G
Болт (Ref #16)
16
Part #93500-050-160-G
Гайка (Ref #17)
17
Part #94001-080-000-S
Washer, plain, 8mm (Ref #18)
18
Part #94102-08000
Washer, plain, 8mm (Ref #18)
18
Part #94102-08000
Washer, plain, 8mm (Ref #18)
18
Part #94102-08000
Washer, plain, 8mm (Ref #18)
18
Part #94102-08000
Шайба (Ref #19)
19
Part #94111-05700
Шайба (Ref #19)
19
Part #94111-05700
Шайба (Ref #19)
19
Part #94111-05700
Шайба (Ref #19)
19
Part #94111-05700
Bolt, flange, 8x20 (Ref #20)
20
Part #95701-080-200-0
Bolt, flange, 8x20 (Ref #20)
20
Part #95701-080-200-0
Bolt, flange, 8x20 (Ref #20)
20
Part #95701-080-200-0
Bolt, flange, 8x20 (Ref #20)
20
Part #95701-080-200-0
