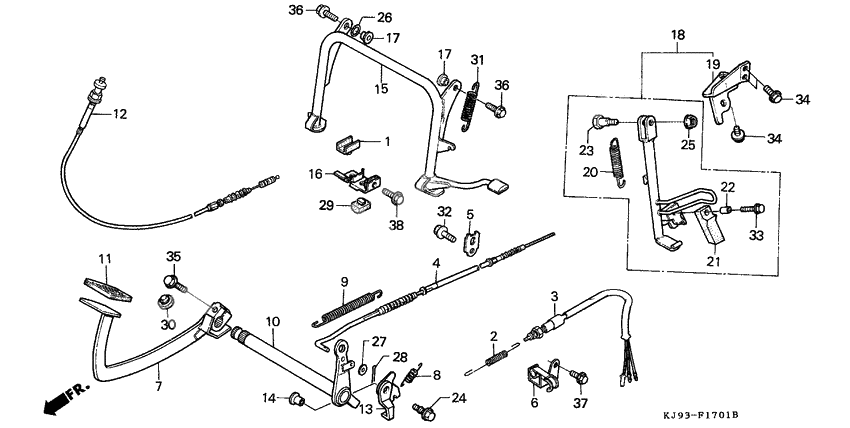

Stand/brake pedal CH125J/L/M/N/P/R
Stand/brake pedal CH125J/L/M/N/P/R
Protr,rad cover (Ref #1)
1
Part #19105-GE2-000
Spring, stop switch (Ref #2)
2
Part #35357-KE1-000
Switch, starter stop (Ref #3)
3
Part #35370-KM1-000
Cable, rr. brake (Ref #4)
4
Part #43450-KV8-971
Stop,rr.brk.cable (Ref #5)
5
Part #43451-KG8-000
Clamp,rr.brake ca (Ref #6)
6
Part #43453-KN7-670
Pedal comp.,rr.br (Ref #7)
7
Part #46500-KV7-670
Пружина (Ref #8)
8
Part #46510-KJ9-000
Sprng brake pedal (Ref #9)
9
Part #46514-KM7-910
Arm comp,middle (Ref #10)
10
Part #46515-KV7-671
COVER (Ref #11)
11
Part #46545-538-010
Cable comp.,brake (Ref #12)
12
Part #46620-KV7-670
Plate,pedal stopp (Ref #13)
13
Part #46625-KV7-670
Bush,stopper pl (Ref #14)
14
Part #46633-KJ9-000
Stand comp.,main (Ref #15)
15
Part #50500-KV7-670
Plate,main stand (Ref #16)
16
Part #50501-KV7-670
Collar,main stand (Ref #17)
17
Part #50504-KJ9-670
Collar,main stand (Ref #17)
17
Part #50504-KJ9-670
Collar,main stand (Ref #17)
17
Part #50504-KJ9-670
Collar,main stand (Ref #17)
17
Part #50504-KJ9-670
Bolt,flange 6x7.5 (Ref #24)
24
Part #90132-KV7-671
Прокладка (Ref #26)
26
Part #91304-035-000
Шайба (Ref #27)
27
Part #94101-06800
PIN (Ref #28)
28
Part #94201-20120
Rubber a,stand (Ref #29)
29
Part #9501161000
Rubber c, stand stopper (Ref #30)
30
Part #9501163000
Spring d, main stand (Ref #31)
31
Part #9501471402
BOLT (Ref #32)
32
Part #95701-060-160-0
Bolt, flange, 8x32 (Ref #35)
35
Part #95701-0803200
Bolt-washer (10x20) (Ref #36)
36
Part #93401-100-200-7
Bolt-washer (10x20) (Ref #36)
36
Part #93401-100-200-7
Bolt-washer (10x20) (Ref #36)
36
Part #93401-100-200-7
Bolt-washer (10x20) (Ref #36)
36
Part #93401-100-200-7
BOLT (Ref #37)
37
Part #96001-060-120-0
