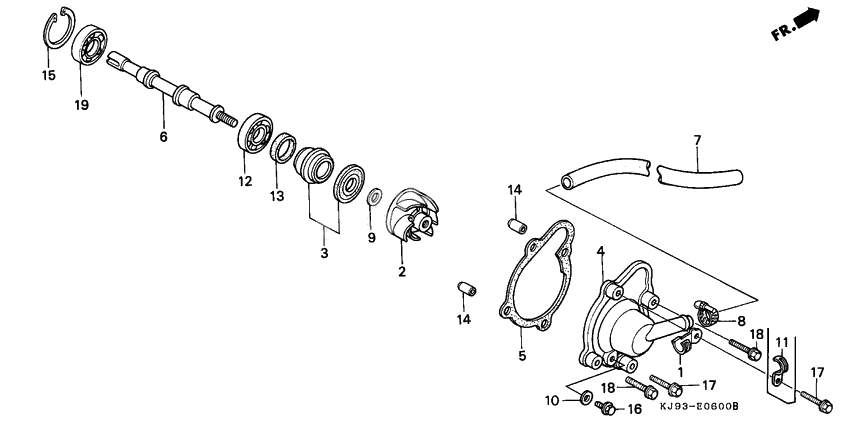

Водяной насос

Водяной насос

Водяной насос
Clamp, breather tube (Ref #1)
1
Part #11339-KN7-671
Impeller,water pu (Ref #2)
2
Part #19215-KJ9-010
Seal, mechanical (Ref #3)
3
Part #19217-657-023
Cover,water pmp (Ref #4)
4
Part #19221-KJ9-010
Прокладка насоса водного (Ref #5)
5
Part #19229-KS4-690
Shaft water pump (Ref #6)
6
Part #19231-KJ9-010
Hose.a,water (Ref #7)
7
Part #19501-KJ9-000
Clamp a, water hose (Ref #8)
8
Part #19505-KS6-700
Шайба (Ref #9)
9
Part #90423-KJ9-000
Washer a, 6mm (Ref #10)
10
Part #90478-700-000
Bearing,radial ba (Ref #12)
12
Part #91001-KJ9-005
Oil seal, 12x20x5 (arai) (Ref #13)
13
Part #91205-KF0-003
Dowel pin (Ref #14)
14
Part #94301-08140
Dowel pin (Ref #14)
14
Part #94301-08140
Dowel pin (Ref #14)
14
Part #94301-08140
Dowel pin (Ref #14)
14
Part #94301-08140
Circlip (Ref #15)
15
Part #94520-26000
Bolt, flange, 6x10 (Ref #16)
16
Part #96001-060-100-0
Bolt, flange, 6x22 (Ref #17)
17
Part #96001-0602200
Bolt, flange, 6x22 (Ref #17)
17
Part #96001-0602200
Bolt, flange, 6x22 (Ref #17)
17
Part #96001-0602200
Bolt, flange, 6x22 (Ref #17)
17
Part #96001-0602200
Bolt, flange, 6x32 (Ref #18)
18
Part #96001-0603200
Bolt, flange, 6x32 (Ref #18)
18
Part #96001-0603200
Bolt, flange, 6x32 (Ref #18)
18
Part #96001-0603200
Bolt, flange, 6x32 (Ref #18)
18
Part #96001-0603200
Bearing, radial ball, 6000 (Ref #19)
19
Part #96100-6000000
+ -
