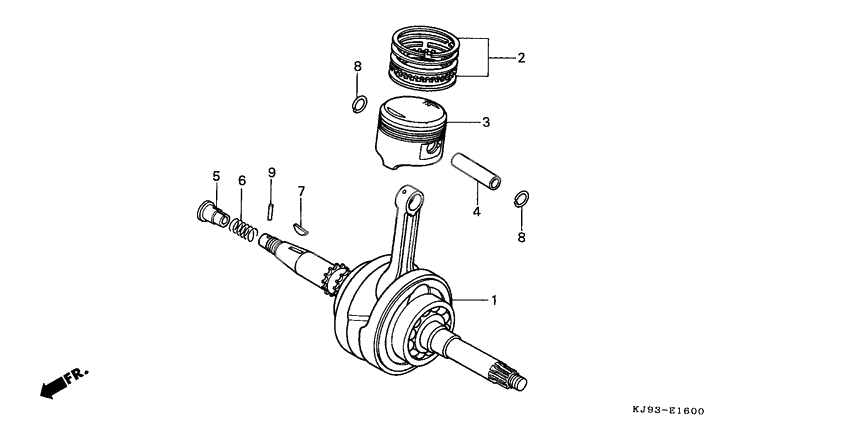

Crankshaft/piston
Crankshaft/piston
Crankshaft comp. (Ref #1)
1
Part #13000-KV8-040
Crankshaft comp. (Ref #1)
1
Part #13000-KV8-030
Комплект колец (Ref #2)
2
Part #13051-KV8-305
Комплект колец (Ref #2)
2
Part #13041-KV8-305
Комплект колец (Ref #2)
2
Part #13031-KV8-305
Комплект колец (Ref #2)
2
Part #13021-KV8-305
Комплект колец (Ref #2)
2
Part #13011-KV8-305
Piston (0.75) (Ref #3)
3
Part #13104-KV8-315
Piston (0.50) (Ref #3)
3
Part #13103-KV8-315
PISTON (Ref #3)
3
Part #13102-KV8-315
PISTON (Ref #3)
3
Part #13101-KV8-010
Piston (1.00) (Ref #3)
3
Part #13105-KV8-315
Палец поршня (Ref #4)
4
Part #13111-384-000
Through, oil (Ref #5)
5
Part #15441-149-000
Spring, oil through (Ref #6)
6
Part #15447-149-000
Key, woodruff (4mm) (Ref #7)
7
Part #90701-HB6-010
Clip, piston pin, 15mm (Ref #8)
8
Part #9460115000
Clip, piston pin, 15mm (Ref #8)
8
Part #9460115000
Clip, piston pin, 15mm (Ref #8)
8
Part #9460115000
Clip, piston pin, 15mm (Ref #8)
8
Part #9460115000
Roller (2x11.8) (Ref #9)
9
Part #9622020118
