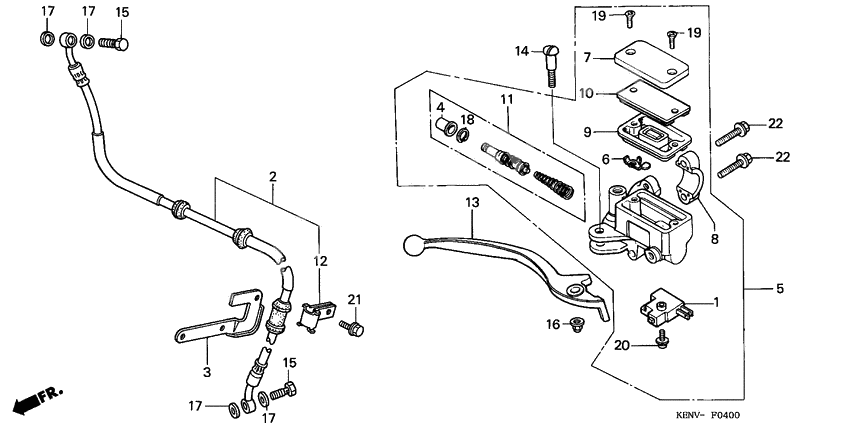

Fr. brake master cylinder
Fr. brake master cylinder
Switch, fr. stop (Ref #1)
1
Part #35340-MM5-600
Hose comp,fr brk (Ref #2)
2
Part #45126-KEB-G01
Stay fr brk hose cla (Ref #3)
3
Part #45131-KEB-620
Ботинок (Ref #4)
4
Part #45504-KB9-960
M/c sub assy fr brk (Ref #5)
5
Part #45510-KEB-620
PROTECTOR (Ref #6)
6
Part #45512-KB9-960
Cap,m/c (Ref #7)
7
Part #45513-KEB-650
Holder,m/c (Ref #8)
8
Part #45517-KEB-650
DIAPHRAGM (Ref #9)
9
Part #45520-KB9-960
PLATE,DIAPHRAGM (Ref #10)
10
Part #45521-KR1-760
Cylinder set,mast (Ref #11)
11
Part #45530-KB9-960
Clamp, brake hose (Ref #12)
12
Part #52115-ML8-670
Lever,r strg.hndl (Ref #13)
13
Part #53175-KEB-650
Bolt,handle lever (Ref #14)
14
Part #90114-KR1-760
Oil bolt,10x22 (Ref #15)
15
Part #90145-GBY-910
Oil bolt,10x22 (Ref #15)
15
Part #90145-GBY-910
Oil bolt,10x22 (Ref #15)
15
Part #90145-GBY-910
Oil bolt,10x22 (Ref #15)
15
Part #90145-GBY-910
Гайка (Ref #16)
16
Part #94050-06000
Circlip (Ref #18)
18
Part #90651-KB9-960
Screw, flat, 4x12 (Ref #19)
19
Part #93600-040121A
Screw, flat, 4x12 (Ref #19)
19
Part #93600-040121A
Screw, flat, 4x12 (Ref #19)
19
Part #93600-040121A
Screw, flat, 4x12 (Ref #19)
19
Part #93600-040121A
Screw-washer (Ref #20)
20
Part #93893-040-120-7
Bolt, flange, 6x14 (Ref #21)
21
Part #95701-0601407
Болт (Ref #22)
22
Part #96001-0602202
Болт (Ref #22)
22
Part #96001-0602202
Болт (Ref #22)
22
Part #96001-0602202
Болт (Ref #22)
22
Part #96001-0602202
