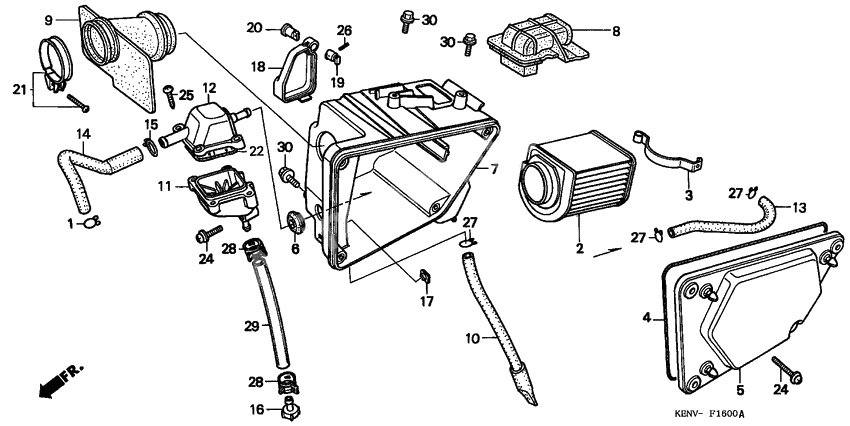

Воздушный фильтр
Воздушный фильтр
Clip, breather tube (Ref #1)
1
Part #15772-292-010
Element,air/c (Ref #2)
2
Part #17211-KEN-690
Spring, a/clnr elem (Ref #3)
3
Part #17216-KR3-000
Валик (Ref #4)
4
Part #17222-MN4-405
Cover air/c case (Ref #5)
5
Part #17220-KEB-620
Grommet, tube (Ref #6)
6
Part #17225-415-300
Case comp. air/c (Ref #7)
7
Part #17230-KEB-620
Duct air/c (Ref #8)
8
Part #17240-KEN-740
Tube air/c conn. (Ref #9)
9
Part #17253-KEN-740
Трубка дренажная (Ref #10)
10
Part #17336-KR3-000
Chamber, breather (Ref #11)
11
Part #17361-KR3-770
Cover, br. chamber (Ref #12)
12
Part #17362-KR3-000
Tube b, breather (Ref #13)
13
Part #17365-KR3-000
Tube, breather (Ref #14)
14
Part #17368-KR3-670
CLIP (Ref #15)
15
Part #17369-KB4-670
Plug, breather tube (Ref #16)
16
Part #17370-382-870
Nut, special, 6x7 (Ref #17)
17
Part #61304-958-003
Крышка (Ref #18)
18
Part #83502-KR3-000
Body, key (Ref #19)
19
Part #83507-422-000
Stopper, key body (Ref #20)
20
Part #83508-KBG-000
Band (56) (Ref #21)
21
Part #9501856250
Seal, br. chamber (Ref #22)
22
Part #91305-KB4-670
Screw-washer (6x28) (Ref #24)
24
Part #93891-0602807
Screw-washer (6x28) (Ref #24)
24
Part #93891-0602807
Screw-washer (6x28) (Ref #24)
24
Part #93891-0602807
Screw-washer (6x28) (Ref #24)
24
Part #93891-0602807
Screw, tap (5x20) (Ref #25)
25
Part #9390135480
Штифт пружины (Ref #26)
26
Part #9430520141
CLAMP (Ref #28)
28
Part #95002-413-000-8
CLAMP (Ref #28)
28
Part #95002-413-000-8
CLAMP (Ref #28)
28
Part #95002-413-000-8
CLAMP (Ref #28)
28
Part #95002-413-000-8
Tube (11x15x280) (Ref #29)
29
Part #95003-370-3031S
-
2083508-438-000
Stopper, key body
1Replaced by 83508-KBG-000 Доступно: Нет в наличии
-
2995003-3702831
Tube (11x15x280)
1Replaced by 95003-370-3031S Доступно: Нет в наличии
