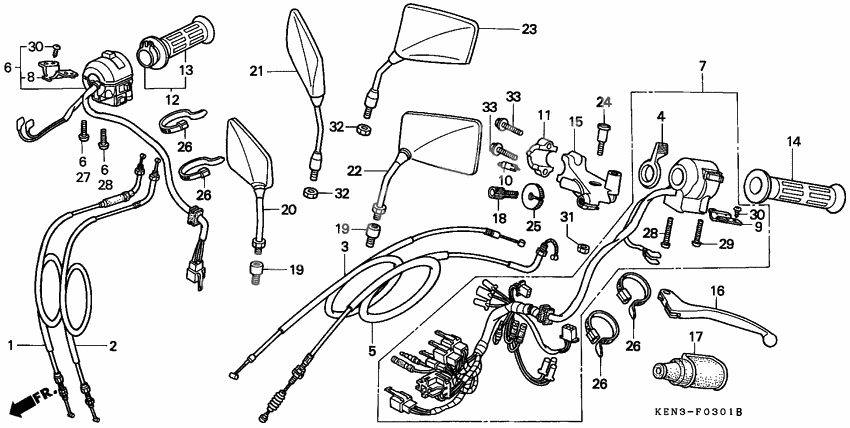

Switch/cable CMX250CT
Switch/cable CMX250CT
Cable a, throttle (Ref #1)
1
Part #17910-KEN-670
Cable b, throttle (Ref #2)
2
Part #17920-KEN-670
Cable, choke (Ref #3)
3
Part #17950-KEN-670
Рукоятка (Ref #4)
4
Part #17962-KE8-701
Тросик сцепления (Ref #5)
5
Part #22870-KEN-670
Set,sw assy.winke (Ref #7)
7
Part #35020-KEN-690
PLATE (Ref #8)
8
Part #35152-KE8-703
PLATE (Ref #9)
9
Part #35204-KE8-702
Switch, fr. lever (Ref #10)
10
Part #35330-413-003
HOLDER (Ref #11)
11
Part #45516-KR3-900
Зажим дросселя (Ref #12)
12
Part #53140-KR3-305
Grip, r. handle (Ref #13)
13
Part #53165-KR3-680
Grip, l. handle (Ref #14)
14
Part #53166-KR3-680
Bracket, handlebar (Ref #15)
15
Part #53172-KR3-900
Boot, handlebar (Ref #16)
16
Part #53180-425-010
Bolt, cable adj. (Ref #18)
18
Part #53192-268-000
Housing stay,mirr (Ref #19)
19
Part #88113-KBA-900
Housing stay,mirr (Ref #19)
19
Part #88113-KBA-900
Housing stay,mirr (Ref #19)
19
Part #88113-KBA-900
Housing stay,mirr (Ref #19)
19
Part #88113-KBA-900
Mirror comp,r bac (Ref #20)
20
Part #88210-KEN-691
Mirror comp,l bac (Ref #22)
22
Part #88220-KEN-691
Болт (Ref #24)
24
Part #90113-438-000
Nut, fixing (Ref #25)
25
Part #90321-MA6-750
Screw-washer (5x20) (Ref #27)
27
Part #93892-0502007
Screw-washer (5x28) (Ref #28)
28
Part #93892-0502807
Screw-washer (5x28) (Ref #28)
28
Part #93892-0502807
Screw-washer (5x28) (Ref #28)
28
Part #93892-0502807
Screw-washer (5x28) (Ref #28)
28
Part #93892-0502807
Screw-washer (5x45) (Ref #29)
29
Part #93892-0504507
Болт (Ref #30)
30
Part #93901-32120
Болт (Ref #30)
30
Part #93901-32120
Болт (Ref #30)
30
Part #93901-32120
Болт (Ref #30)
30
Part #93901-32120
Гайка (Ref #31)
31
Part #94001-062-000-S
Болт (Ref #33)
33
Part #96001-0602202
Болт (Ref #33)
33
Part #96001-0602202
Болт (Ref #33)
33
Part #96001-0602202
Болт (Ref #33)
33
Part #96001-0602202
