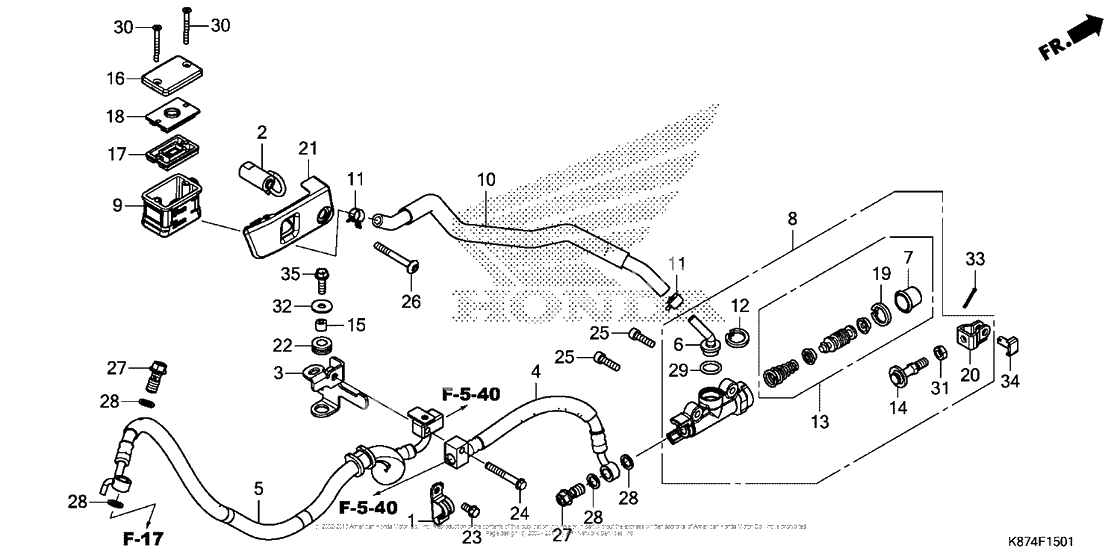

Задний тормозной цилиндр 2
Задний тормозной цилиндр 2
Clamp, brake hose (Ref #1)
1
Part #43155-K87-L50
COLLAR, OIL CUP (Ref #2)
2
Part #43156-K87-A00
Stay, rr. brake hose (Ref #3)
3
Part #43160-K87-L50
Hose a, rr. brake (Ref #4)
4
Part #43314-K87-L51
Hose d, rr. brake (Ref #5)
5
Part #43317-K87-L51
Коннектор (Ref #6)
6
Part #43503-KCY-671
Ботинок (Ref #7)
7
Part #43504-MB2-006
M/cyl sub-assy, rr. (Ref #8)
8
Part #43510-K87-A01
Cup, oil (Ref #9)
9
Part #43511-KV3-831
Hose, rr. (Ref #10)
10
Part #43512-K87-A01
CLAMP (Ref #11)
11
Part #43514-KS6-701
Circlip, rr. (Ref #12)
12
Part #43517-KS6-701
Piston set, master c (Ref #13)
13
Part #43520-MJ6-315
Rod, push (Ref #14)
14
Part #43530-KZZ-901
COLLAR (Ref #15)
15
Part #45161-K87-L50
Cap, master cylinder (Ref #16)
16
Part #45513-HR0-305
DIAPHRAGM (Ref #17)
17
Part #45520-MG7-006
Пластина (Ref #18)
18
Part #45521-HA2-006
Circlip (Ref #19)
19
Part #46182-MEL-D21
Joint, brake rod (Ref #20)
20
Part #46504-KV6-702
Cover, oil cup (Ref #21)
21
Part #50328-K87-A00
GROMMET (Ref #22)
22
Part #64312-KWW-640
BOLT, FLANGE (6X12) (Ref #23)
23
Part #90013-GHB-610
BOLT, FLANGE (6X45) (Ref #24)
24
Part #90013-GHB-720
Bolt, socket (6x22) (Ref #25)
25
Part #90111-GHB-660
Bolt (6x50) (Ref #26)
26
Part #90113-K87-A00
Bolt, oil (10x22) (Ref #27)
27
Part #90145-MS9-612
Шайба (Ref #28)
28
Part #90545-300-000
Прокладка (Ref #29)
29
Part #91212-422-006
Screw, flat (4x40) (Ref #30)
30
Part #93600-040401G
Гайка (Ref #31)
31
Part #94002-080-000-S
Шайба (Ref #32)
32
Part #94103-06000
PIN (Ref #33)
33
Part #94201-20150
Pin d, joint (Ref #34)
34
Part #9501554000
BOLT (Ref #35)
35
Part #95701-060-200-0
