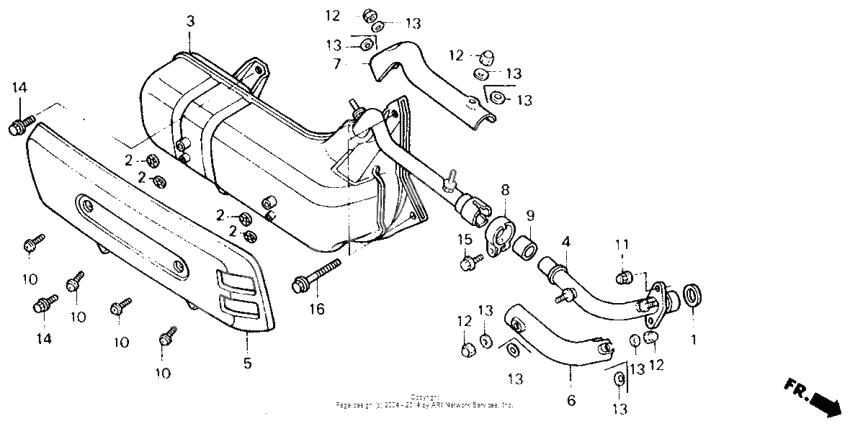

Muffler
Muffler
Gasket, ex. pipe (Ref #1)
1
Part #18291-KS4-690
Muffler comp.,ex. (Ref #3)
3
Part #18300-KAB-670
Joint comp.,ex.pi (Ref #4)
4
Part #18301-KAB-000
Protector *nh106* (Ref #5)
5
Part #18318-KAB-000ZA
Protector,ex.join (Ref #6)
6
Part #18325-KAB-000
Protector,ex.pipe (Ref #7)
7
Part #18326-KAB-003
Band, ex. pipe (Ref #8)
8
Part #18373-KAB-000
Gasket, muffler (Ref #9)
9
Part #18391-MN1-670
Nut, cap (8mm) (Ref #11)
11
Part #90304-ME1-670
BOLT (Ref #14)
14
Part #95701-080-160-7
BOLT (Ref #14)
14
Part #95701-080-160-7
BOLT (Ref #14)
14
Part #95701-080-160-7
BOLT (Ref #14)
14
Part #95701-080-160-7
Bolt, flange, 8x32 (Ref #15)
15
Part #95701-0803200
BOLT (Ref #16)
16
Part #95701-080-400-7
