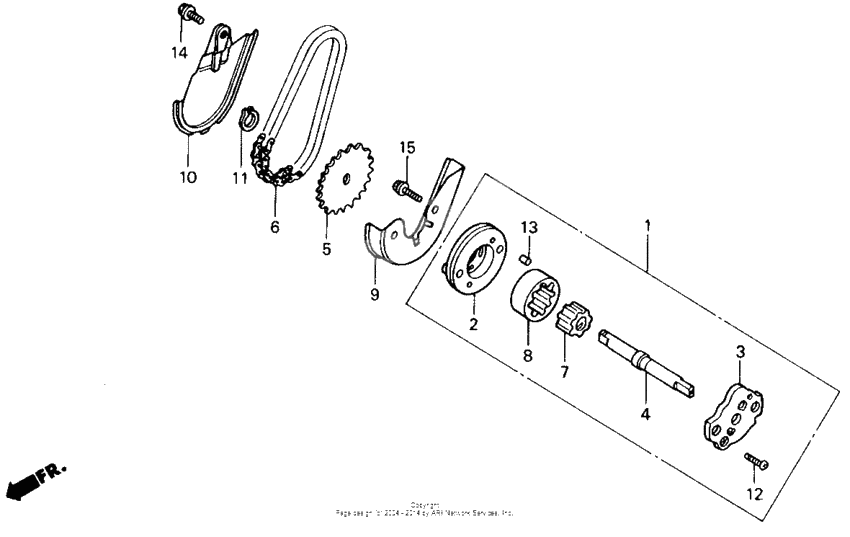

Oil pump
Oil pump
Насос масляный (Ref #1)
1
Part #15100-KAB-000
Корпус масляного насоса (Ref #2)
2
Part #15101-KAB-000
Плата масляного насоса (Ref #3)
3
Part #15116-KAB-000
Вал масляной помпы (Ref #4)
4
Part #15132-KAB-000
Звездочка (Ref #5)
5
Part #15133-KAB-000
Chain, oil pump (Ref #6)
6
Part #15141-KAB-003
Rotor, oil pump (Ref #7)
7
Part #15331-KAB-000
Rotor, oil pump outer (yamada) (Ref #8)
8
Part #15332-921-003
Oil separater a (Ref #9)
9
Part #15711-KAB-000
Oil separater com (Ref #10)
10
Part #15712-KAB-000
Circlip (8mm) (Ref #11)
11
Part #90604-HA0-000
Screw, pan, 3x12 (Ref #12)
12
Part #93500-030120A
Pin c (Ref #13)
13
Part #94303-04065
BOLT (Ref #14)
14
Part #95701-060-140-0
BOLT (Ref #15)
15
Part #96001-060-280-0
