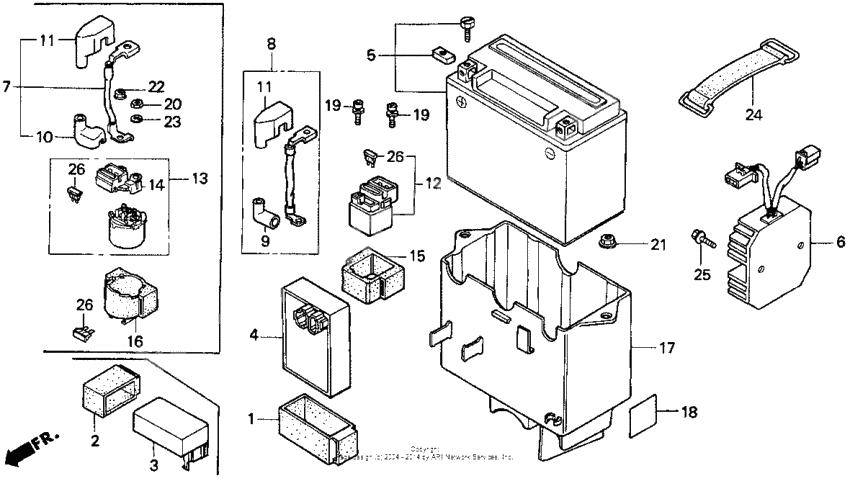

Battery
Battery
Cushion, c.d.i. unit (Ref #1)
1
Part #30401-HA0-000
Module, ign cont (Ref #4)
4
Part #30410-KS4-710
Battery yt12-12 (Ref #5)
5
Part #31500-HF1-678AH
Rectifier, regulator (Ref #6)
6
Part #31600-KS4-841
Rectifier, regulator (Ref #6)
6
Part #31600-KM1-008
Wire, battery plus (Ref #8)
8
Part #32401-KS4-710
COVER (Ref #9)
9
Part #32405-KAB-000
COVER (Ref #11)
11
Part #32412-HB3-000
COVER (Ref #11)
11
Part #32412-HB3-000
COVER (Ref #11)
11
Part #32412-HB3-000
COVER (Ref #11)
11
Part #32412-HB3-000
Switch assy (Ref #12)
12
Part #35850-KL8-740
RUBBER (Ref #15)
15
Part #35856-KS4-710
Коробка аккамулятора (Ref #17)
17
Part #50326-KS4-010
Диаграмма (Ref #18)
18
Part #87135-KS4-A00
Bolt, socket (5x9) (Ref #19)
19
Part #90111-MR5-000
Bolt, socket (5x9) (Ref #19)
19
Part #90111-MR5-000
Bolt, socket (5x9) (Ref #19)
19
Part #90111-MR5-000
Bolt, socket (5x9) (Ref #19)
19
Part #90111-MR5-000
Гайка (Ref #21)
21
Part #94050-06000
Band b2, battery (Ref #24)
24
Part #9501213001
BOLT (Ref #25)
25
Part #95701-060-160-0
