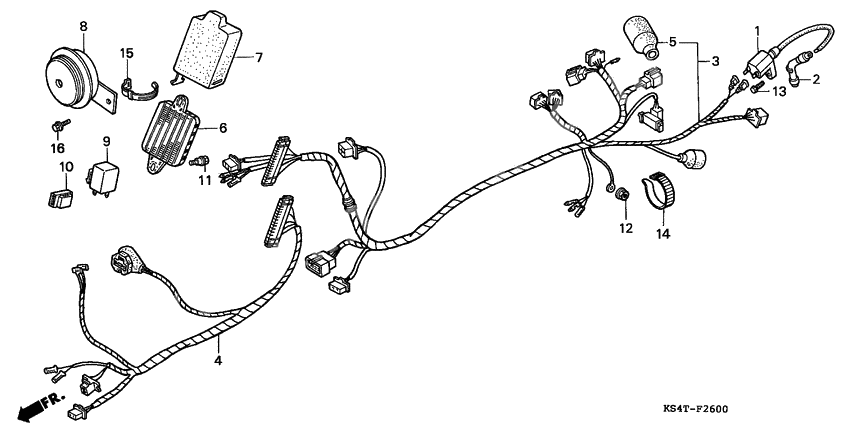

Harness wire
Harness wire
Катушка зажигания (Ref #1)
1
Part #30510-GR2-405
Cap assy. (Ref #2)
2
Part #30700-KS4-671
Harness,wire (Ref #3)
3
Part #32100-KS4-620
Sub harness (Ref #4)
4
Part #32101-KS4-620
COVER (Ref #5)
5
Part #32108-003-000
Multi-connector (Ref #6)
6
Part #32150-GE8-601
Cvr, multi-connector (Ref #7)
7
Part #32155-KS4-000
Horn (Ref #8)
8
Part #38110-KM1-018
Relay, turn signal (Ref #9)
9
Part #38301-MG2-008
Relay, turn signal (Ref #9)
9
Part #38301-KJ6-743
Suspension (Ref #10)
10
Part #38306-KJ6-740
BOLT (Ref #11)
11
Part #90111-162-000
Nut, cap, 6mm (Ref #12)
12
Part #90201-415-000
Bolt, hex., 5x20 (Ref #13)
13
Part #92101-05020-0A
Band b1, wire (Ref #14)
14
Part #32161-404-000
Band b3, wire (Ref #15)
15
Part #9501462300
Bolt, flange, 8x12 (Ref #16)
16
Part #95701-0801200
