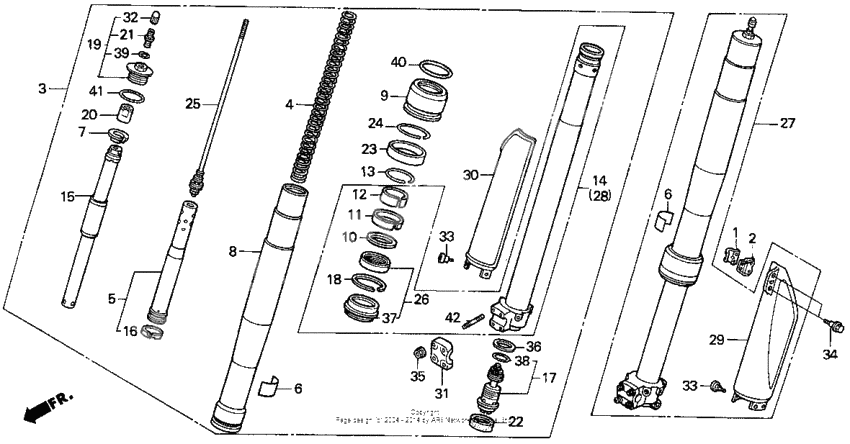

Front fork 90
Front fork 90
Clamp a, fr. (Ref #1)
1
Part #45461-KA3-710
Clamp b, fr. (Ref #2)
2
Part #45462-KA3-710
Fork assy., r. fr. (Ref #3)
3
Part #51400-KZ3-771
Spring, fr. fork (Ref #4)
4
Part #51401-KZ4-701
Spring, fr. fork (Ref #4)
4
Part #51401-KZ3-701
Пружина (Ref #4)
4
Part #51401-ML3-921
Collar, spring (Ref #5)
5
Part #51404-KZ3-701
LABEL (Ref #6)
6
Part #51405-ML3-911
LABEL (Ref #6)
6
Part #51405-ML3-911
LABEL (Ref #6)
6
Part #51405-ML3-911
LABEL (Ref #6)
6
Part #51405-ML3-911
Stopper, spring seat (Ref #7)
7
Part #51406-ML3-911
Tube (outer) (Ref #8)
8
Part #51410-KZ3-701
Case, oil seal (Ref #9)
9
Part #51411-KZ3-701
Ring, back-up (Ref #10)
10
Part #51412-KZ3-003
Bush, guide (Ref #11)
11
Part #51414-KZ3-701
Bush, slider (Ref #12)
12
Part #51415-MCH-003
Кольцо (Ref #13)
13
Part #51419-KZ3-003
Pipe, r. slide (Ref #14)
14
Part #51420-KZ3-701
Цилиндр (Ref #15)
15
Part #51431-KZ3-701
Кольцо поршневое (Ref #16)
16
Part #51435-KZ3-701
Bolt, center (Ref #17)
17
Part #51441-KZ3-701
RING (Ref #18)
18
Part #51447-KZ3-003
Bolt assy., fr. fork (Ref #19)
19
Part #51450-KZ3-003
Nut, lock (10mm) (Ref #20)
20
Part #51451-KZ3-003
Valve, air (Ref #21)
21
Part #51456-469-013
Cap, fr. fork (Ref #22)
22
Part #51461-KZ3-003
Уплотнение (Ref #23)
23
Part #51475-KZ3-013
Кольцо (Ref #24)
24
Part #51476-KZ3-003
Rod, piston (Ref #25)
25
Part #51480-KZ3-701
Seal set, fr. fork (Ref #26)
26
Part #51490-KZ3-810
Fork assy., l. fr. (Ref #27)
27
Part #51500-KZ3-771
Case, l. slide (Ref #28)
28
Part #51520-KZ3-701
Protr, l. fr. fork (Ref #29)
29
Part #51610-ML3-910
Protr, r. fr. fork (Ref #30)
30
Part #51620-KZ3-010
Держатель оси (Ref #31)
31
Part #51634-MV1-003
Чашка воздушного клапана (Ref #32)
32
Part #52425-381-771
Bolt, disk (6x13) (Ref #33)
33
Part #90106-KZ3-000
Bolt, disk (6x13) (Ref #33)
33
Part #90106-KZ3-000
Bolt, disk (6x13) (Ref #33)
33
Part #90106-KZ3-000
Bolt, disk (6x13) (Ref #33)
33
Part #90106-KZ3-000
Bolt, flange, 6mm (Ref #34)
34
Part #90113-KZ3-000
Nut, u, 6mm (Ref #35)
35
Part #90301-473-003
Шайба специальная (Ref #36)
36
Part #90544-KZ3-003
DUST SEAL (Ref #37)
37
Part #91254-KZ3-003
Прокладка (Ref #38)
38
Part #91256-GC5-003
O-ring, 5.8x1.9 (Ref #39)
39
Part #91305-323-000
Прокладка (Ref #40)
40
Part #91360-SM4-003
Прокладка (Ref #41)
41
Part #91356-KZ3-003
Болт заклепка (Ref #42)
42
Part #92900-06025-0E
-
-
Цена: 2 380.00 р.
Доступно: 2
-
