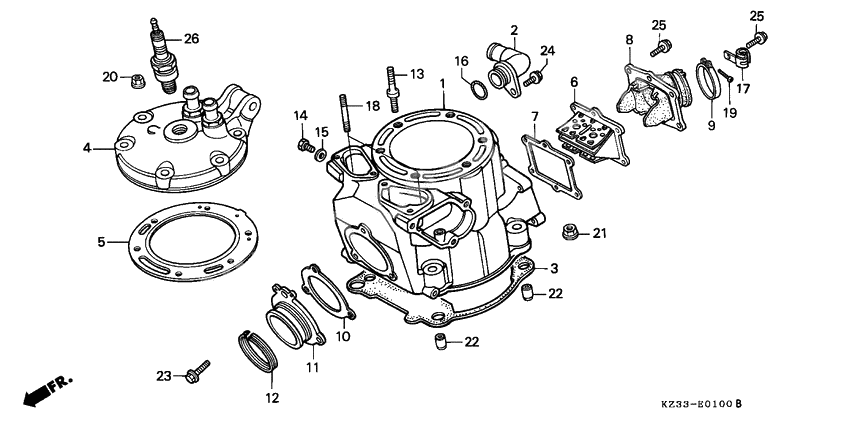

Cylinder/ cylinder head
Cylinder/ cylinder head
Цилиндр (Ref #1)
1
Part #12100-KZ3-700
Joint, water hose (Ref #2)
2
Part #12103-KZ3-700
Прокладка цилиндра (Ref #3)
3
Part #12191-KS7-880
Головка цилиндров (Ref #4)
4
Part #12200-KZ3-700
Gasket, cyl hd (Ref #5)
5
Part #12254-KZ3-000
Клапан (Ref #6)
6
Part #14100-KZ3-700
Gasket a, reed valve (Ref #7)
7
Part #14132-KAE-000
Изолятор (Ref #8)
8
Part #16221-KZ3-700
Band, insulator (Ref #9)
9
Part #16223-KA5-690
Gasket, ex. flange (Ref #10)
10
Part #18291-KS7-880
Joint, ex. pipe (Ref #11)
11
Part #18352-KS7-010
Seal, ex. pipe (Ref #12)
12
Part #18359-KS7-000
Bolt, special stud (Ref #13)
13
Part #90011-HA2-000
Bolt, oil check (Ref #14)
14
Part #90037-360-000
Gasket, fr. (Ref #15)
15
Part #90543-273-000
Прокладка (Ref #16)
16
Part #91301-147-023
CLIP (Ref #17)
17
Part #91406-657-671
BOLT (Ref #18)
18
Part #92900-06020-0B
Болт (Ref #19)
19
Part #93500-050-250-A
Гайка (Ref #20)
20
Part #94050-08000
Гайка (Ref #21)
21
Part #94050-10000
Dowel pin (Ref #22)
22
Part #94301-12200
Dowel pin (Ref #22)
22
Part #94301-12200
Dowel pin (Ref #22)
22
Part #94301-12200
Dowel pin (Ref #22)
22
Part #94301-12200
Болт (Ref #23)
23
Part #96001-0601807
BOLT (Ref #24)
24
Part #96001-060-200-0
Болт (Ref #25)
25
Part #96300-0602200
Болт (Ref #25)
25
Part #96300-0602200
Болт (Ref #25)
25
Part #96300-0602200
Болт (Ref #25)
25
Part #96300-0602200
S/plg (w24esr-v) (Ref #26)
26
Part #9807958659
Spark plug (br8eg) (Ref #26)
26
Part #9807958679
