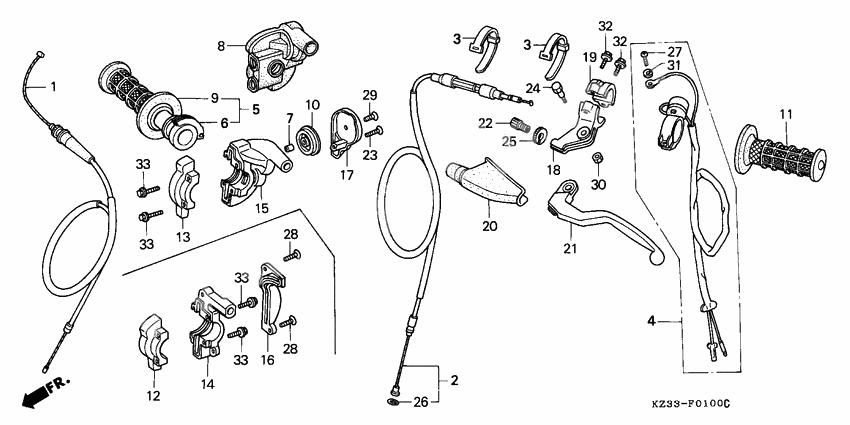

Handle lever/switch/ cable
Handle lever/switch/ cable
Cable, throttle (Ref #1)
1
Part #17910-KZ3-730
Cable, clutch (Ref #2)
2
Part #22870-KA4-831
Band b1, wire (Ref #3)
3
Part #32161-404-000
Band b1, wire (Ref #3)
3
Part #32161-404-000
Band b1, wire (Ref #3)
3
Part #32161-404-000
Band b1, wire (Ref #3)
3
Part #32161-404-000
Switch assy., stop (Ref #4)
4
Part #35130-KZ3-860
Pipe, throttle grip (Ref #6)
6
Part #53141-KZ4-000
Grip, r. handle (Ref #9)
9
Part #53165-430-000
Grip, l. handle (Ref #11)
11
Part #53166-GFW-305
Housing a, grip (Ref #12)
12
Part #53167-KS6-000
Housing b, grip (Ref #14)
14
Part #53168-KS6-000
Cover b, housing (Ref #16)
16
Part #53169-ML3-790
Brkt, l. handlebar (Ref #18)
18
Part #53172-KA3-730
Holder, l (Ref #19)
19
Part #53174-KA3-730
Cover, l. handlebar (Ref #20)
20
Part #53177-430-000
Control lever, l. (Ref #21)
21
Part #53178-KA3-840
Bolt, cable adj. (Ref #22)
22
Part #53192-KA4-710
BOLT (Ref #24)
24
Part #90114-428-870
Nut, fixing (Ref #25)
25
Part #90321-KF0-000
Прокладка (Ref #26)
26
Part #91357-KA4-004
Болт (Ref #27)
27
Part #93500-040-120-A
Screw, oval (4x10) (Ref #28)
28
Part #93700-040100G
Screw, oval (4x10) (Ref #28)
28
Part #93700-040100G
Screw, oval (4x10) (Ref #28)
28
Part #93700-040100G
Screw, oval (4x10) (Ref #28)
28
Part #93700-040100G
Гайка (Ref #30)
30
Part #94001-062-000-S
Шайба (Ref #31)
31
Part #94111-04000
Болт (Ref #32)
32
Part #96001-0602007
Болт (Ref #32)
32
Part #96001-0602007
Болт (Ref #32)
32
Part #96001-0602007
Болт (Ref #32)
32
Part #96001-0602007
-
435130-GM7-700
Switch assy., stop
1Replaced by 35130-KZ3-860 Доступно: Нет в наличии
