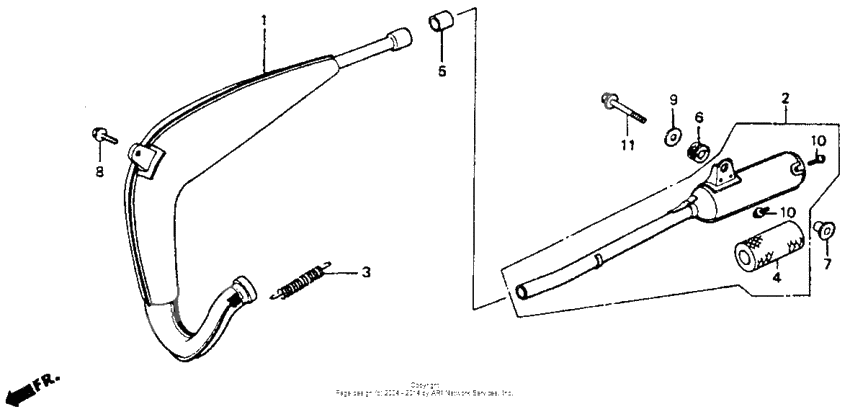

Muffler
Muffler
Chamber comp.,ex. (Ref #1)
1
Part #18300-GS2-000
Silencer comp (Ref #2)
2
Part #18330-GS2-700
Spring, ex. pipe (Ref #3)
3
Part #18332-KS6-000
Wool,glass (Ref #4)
4
Part #18350-GS2-700
Уплотнение глушителя (Ref #5)
5
Part #18361-GS2-000
RUBBER (Ref #6)
6
Part #19051-KA3-710
COLLAR (Ref #7)
7
Part #19052-KA3-710
Болт (Ref #8)
8
Part #96300-0802000
Washer, tank cushion (Ref #9)
9
Part #90503-898-000
Screw-washer, 5x10 (Ref #10)
10
Part #93892-0501000
Screw-washer, 5x10 (Ref #10)
10
Part #93892-0501000
Screw-washer, 5x10 (Ref #10)
10
Part #93892-0501000
Screw-washer, 5x10 (Ref #10)
10
Part #93892-0501000
BOLT (Ref #11)
11
Part #96001-060-280-0
