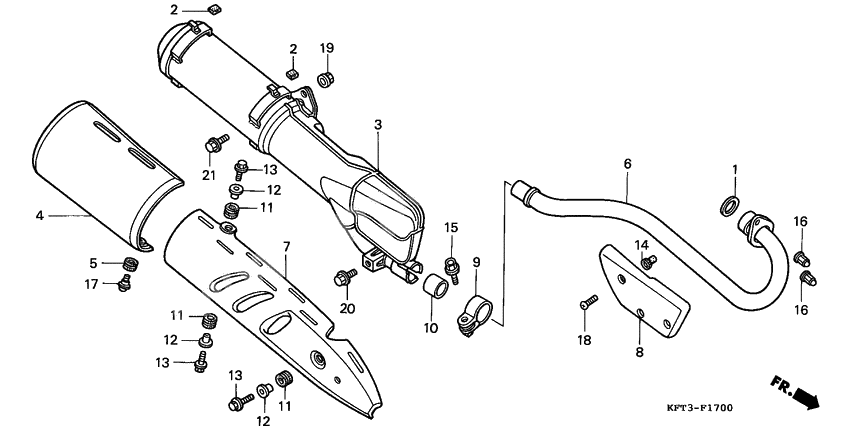

Exhaust muffler
Exhaust muffler
Gasket, ex. pipe (Ref #1)
1
Part #18291-MN5-650
Rubber, protector (Ref #2)
2
Part #18293-MN0-000
Rubber, protector (Ref #2)
2
Part #18293-MN0-000
Rubber, protector (Ref #2)
2
Part #18293-MN0-000
Rubber, protector (Ref #2)
2
Part #18293-MN0-000
Muffler comp. (Ref #3)
3
Part #18310-KFT-620
Protector,muffler (Ref #4)
4
Part #18315-KFT-620
Rubber, protector (Ref #5)
5
Part #18316-KFT-620
Pipe comp.,exhaus (Ref #6)
6
Part #18320-KFT-620
Protector,exh.pip (Ref #7)
7
Part #18325-KFT-620
Cover,r exhaust (Ref #8)
8
Part #18335-KFT-620
Band, l. ex. pipe (Ref #9)
9
Part #18374-MN1-670
Gasket, muffler (Ref #10)
10
Part #18391-MB0-891
Гайка (Ref #14)
14
Part #90111-KW3-003
Болт (Ref #15)
15
Part #90113-MT3-000
Nut, cap (6mm) (Ref #16)
16
Part #90304-438-000
Nut, cap (6mm) (Ref #16)
16
Part #90304-438-000
Nut, cap (6mm) (Ref #16)
16
Part #90304-438-000
Nut, cap (6mm) (Ref #16)
16
Part #90304-438-000
Screw (5mm) (Ref #17)
17
Part #91422-KFT-620
Screw, pan (5x14) (Ref #18)
18
Part #93500-050140G
Гайка (Ref #19)
19
Part #94050-08000
BOLT (Ref #20)
20
Part #95701-080-160-7
Bolt, flange, 8x45 (Ref #21)
21
Part #95701-0804507
-
-
Цена: 560.00 р.
Доступно: 3
-
-
-
