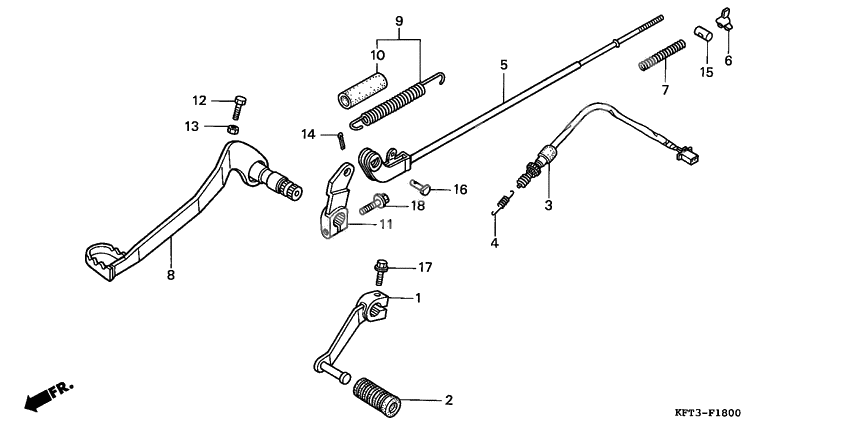

Brake pedal assy
Brake pedal assy
Pedal,gear change (Ref #1)
1
Part #24700-KFT-620
Rubber, gearshift (Ref #2)
2
Part #24781-449-000
Sw assy,rear stop (Ref #3)
3
Part #35350-KFT-621
Spring,stop switc (Ref #4)
4
Part #35357-MN1-650
Rod comp,rr brk (Ref #5)
5
Part #43451-KFT-620
Nut,brake adjusti (Ref #6)
6
Part #43459-GN4-680
Spring a, brake rod (Ref #7)
7
Part #43472-KB9-750
PEDAL COMP,BRAKE (Ref #8)
8
Part #46500-KFT-620
Spg.,brake pedal (Ref #9)
9
Part #46514-KB9-000
Tube.brk.pedal (Ref #10)
10
Part #95005-1206030
Arm,middle (Ref #11)
11
Part #46516-KFT-620
BOLT (Ref #12)
12
Part #92101-06020-0A
Гайка (Ref #13)
13
Part #94002-060-000-S
PIN (Ref #14)
14
Part #94201-20120
Joint b,brake arm (Ref #15)
15
Part #43453-GN4-680
Pin, joint (Ref #16)
16
Part #9501553000
BOLT (Ref #17)
17
Part #95701-060-200-7
Болт (Ref #18)
18
Part #95801-0803007
