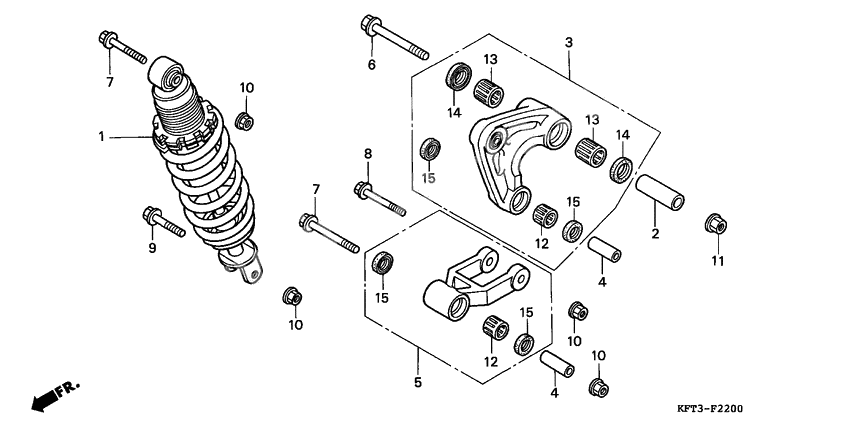

Rear cushion

Rear cushion

Rear cushion
Cushion as*nh420* (Ref #1)
1
Part #52400-KFT-611ZA
Collar,cushion ar (Ref #2)
2
Part #52464-KB7-980
Arm sub assy,cush (Ref #3)
3
Part #52465-KFT-620
COLLAR (Ref #4)
4
Part #52473-KZ9-710
COLLAR (Ref #4)
4
Part #52473-KZ9-710
COLLAR (Ref #4)
4
Part #52473-KZ9-710
COLLAR (Ref #4)
4
Part #52473-KZ9-710
Rod sub assy,cush (Ref #5)
5
Part #52475-KFT-620
Bolt,flg.,12x78 (Ref #6)
6
Part #90128-MA0-003
Bolt,flange,10x69 (Ref #7)
7
Part #90129-MA0-003
Bolt,flange,10x69 (Ref #7)
7
Part #90129-MA0-003
Bolt,flange,10x69 (Ref #7)
7
Part #90129-MA0-003
Bolt,flange,10x69 (Ref #7)
7
Part #90129-MA0-003
Болт (Ref #8)
8
Part #90150-KF0-000
Болт (Ref #9)
9
Part #90154-HA8-000
Nut, flange, 12mm (Ref #11)
11
Part #90306-KF0-003
Bearing, needle (Ref #12)
12
Part #91071-KV3-005
Bearing, needle (Ref #12)
12
Part #91071-KV3-005
Bearing, needle (Ref #12)
12
Part #91071-KV3-005
Bearing, needle (Ref #12)
12
Part #91071-KV3-005
Needle brg (Ref #13)
13
Part #91079-KS7-832
Needle brg (Ref #13)
13
Part #91079-KS7-832
Needle brg (Ref #13)
13
Part #91079-KS7-832
Needle brg (Ref #13)
13
Part #91079-KS7-832
Dust seal (18x25x5) (Ref #14)
14
Part #91261-KB7-981
Dust seal (18x25x5) (Ref #14)
14
Part #91261-KB7-981
Dust seal (18x25x5) (Ref #14)
14
Part #91261-KB7-981
Dust seal (18x25x5) (Ref #14)
14
Part #91261-KB7-981
+ -
