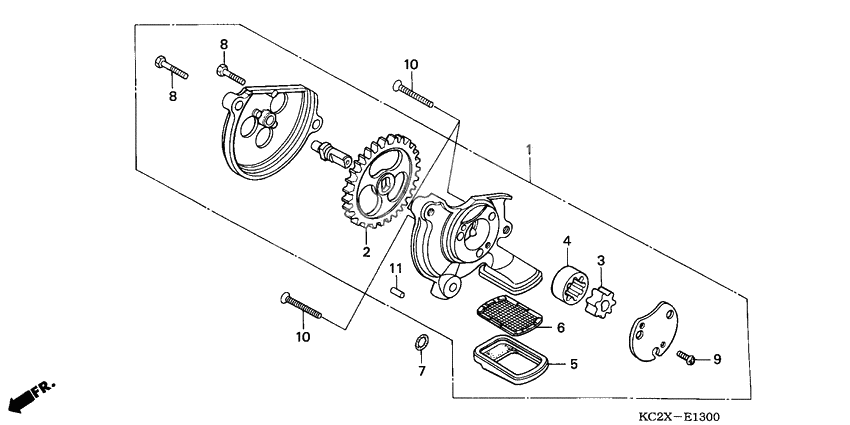

Oil pump
Oil pump
Насос масляный (Ref #1)
1
Part #15100-402-010
Gear a,oil pump (Ref #2)
2
Part #15131-399-000
Rotor, oil pump inner (yamada) (Ref #3)
3
Part #15331-399-000
Rotor, oil pump outer (yamada) (Ref #4)
4
Part #15332-399-000
Holder, screen (Ref #5)
5
Part #15421-399-000
Screen, oil filter (Ref #6)
6
Part #15422-399-000
Прокладка (Ref #7)
7
Part #91319-323-000
Bolt, hex., 5x20 (Ref #8)
8
Part #92101-05020-0A
Bolt, hex., 5x20 (Ref #8)
8
Part #92101-05020-0A
Bolt, hex., 5x20 (Ref #8)
8
Part #92101-05020-0A
Bolt, hex., 5x20 (Ref #8)
8
Part #92101-05020-0A
Болт (Ref #9)
9
Part #93500-050-100-A
Screw, flat (6x32) (Ref #10)
10
Part #93600-060320A
Screw, flat (6x32) (Ref #10)
10
Part #93600-060320A
Screw, flat (6x32) (Ref #10)
10
Part #93600-060320A
Screw, flat (6x32) (Ref #10)
10
Part #93600-060320A
Pin c (Ref #11)
11
Part #94303-04065
