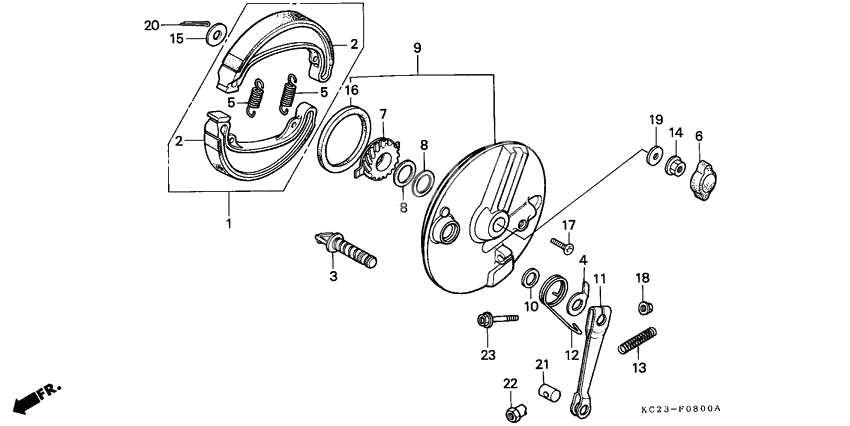

Front brake panel
Front brake panel
Shoe set, brake (Ref #1)
1
Part #06450-KC2-680
Cam, fr. brake (Ref #3)
3
Part #45141-KBG-003
Indicator, rr. brake (Ref #4)
4
Part #43145-399-000
Spring, brake shoe (Ref #5)
5
Part #43151-329-000
Spring, brake shoe (Ref #5)
5
Part #43151-329-000
Spring, brake shoe (Ref #5)
5
Part #43151-329-000
Spring, brake shoe (Ref #5)
5
Part #43151-329-000
Gear, speedometer (Ref #7)
7
Part #44804-KB4-003
Шайба (Ref #8)
8
Part #44809-402-000
Шайба (Ref #8)
8
Part #44809-402-000
Шайба (Ref #8)
8
Part #44809-402-000
Шайба (Ref #8)
8
Part #44809-402-000
Panel sub, fr. brake (Ref #9)
9
Part #45010-KB4-003
Dust seal, brake cam (Ref #10)
10
Part #45134-250-000
Arm, fr. brake (Ref #11)
11
Part #45410-402-000
Пружина (Ref #12)
12
Part #45435-121-010
Пружина (Ref #13)
13
Part #45435-250-000
Nut, u (14mm) (Ref #14)
14
Part #90305-GE8-003
Washer a (Ref #15)
15
Part #90524-030-000
Oil seal (54x66x7) (Ref #16)
16
Part #91251-230-003
Screw, oval (5x16) (Ref #17)
17
Part #93700-050160A
Гайка (Ref #18)
18
Part #94050-06000
Washer, plain, 14mm (Ref #19)
19
Part #9410214000
PIN (Ref #20)
20
Part #9420120350
Joint b, brake arm (Ref #21)
21
Part #9501532001
Nut b, brake rod adjusting (Ref #22)
22
Part #9501542000
Bolt, flange, 6x35 (Ref #23)
23
Part #95701-0603500
