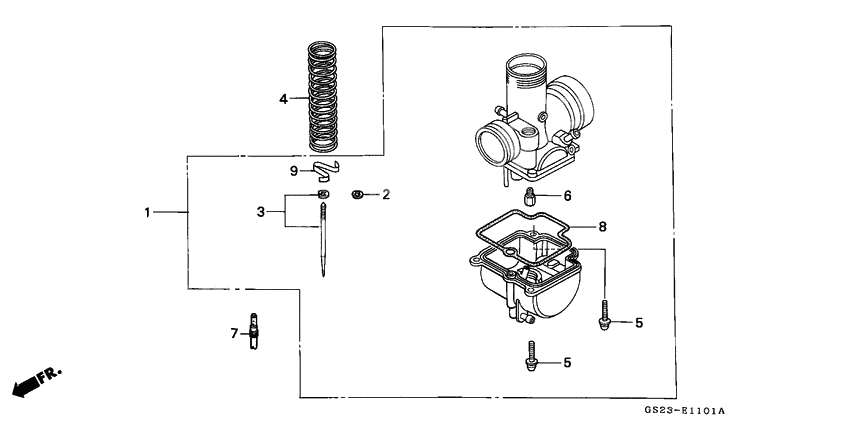

Carburetor optional parts kit
Carburetor optional parts kit
Parts kit,carb op (Ref #1)
1
Part #16020-GS2-003
Clip, bar (Ref #2)
2
Part #16115-GHB-610
Ndl, jet (24naac) (Ref #3)
3
Part #16204-GBF-B01
Ndl, jet (24naaa) (Ref #3)
3
Part #16012-GBF-B01
NEEDLE SET,JET (Ref #3)
3
Part #16202-GC4-601
Spring,compressin (Ref #4)
4
Part #16210-GC4-731
Screw,washer 4x12 (Ref #5)
5
Part #93892-040-160-8
Screw,washer 4x12 (Ref #5)
5
Part #93892-040-160-8
Screw,washer 4x12 (Ref #5)
5
Part #93892-040-160-8
Screw,washer 4x12 (Ref #5)
5
Part #93892-040-160-8
Jet, main (#115) (Ref #6)
6
Part #99101-3571150
Jet, main (#118) (Ref #6)
6
Part #99101-3571180
Jet, main (#135) (Ref #6)
6
Part #99101-3571350
Jet, main (#122) (Ref #6)
6
Part #99101-3571220
Jet, main (#120) (Ref #6)
6
Part #99101-3571200
Jet, main (#130) (Ref #6)
6
Part #99101-3571300
Jet, main (#128) (Ref #6)
6
Part #99101-3571280
Jet, main (#132) (Ref #6)
6
Part #99101-3571320
Жиклер (Ref #7)
7
Part #99103-4400500
Жиклер (Ref #7)
7
Part #99103-3990550
Chamber,gasket (Ref #8)
8
Part #16163-KG8-901
Plate, needle clip (Ref #9)
9
Part #16114-KG8-901
