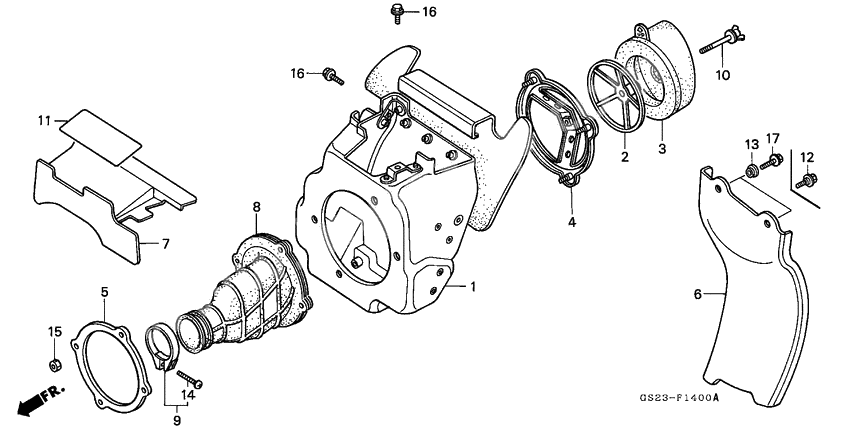

Воздушный фильтр
Воздушный фильтр
Case air/c (Ref #1)
1
Part #17210-GS2-700
Base, element (Ref #2)
2
Part #17212-GC4-600
Фильтр воздушный (Ref #3)
3
Part #17213-GS2-680
Stay, a/clnr elem (Ref #4)
4
Part #17215-GC4-600
Plate, fr. case (Ref #5)
5
Part #17217-GC4-600
MUDGUARD (Ref #6)
6
Part #17219-GW6-000
Cover air/c case (Ref #7)
7
Part #17223-GS2-700
Tube,air cleaner (Ref #8)
8
Part #17253-GC4-600
Band, air cleaner connecting tube (58) (Ref #9)
9
Part #9501858250
Bolt,elment setti (Ref #10)
10
Part #17291-GC4-600
LABEL (Ref #11)
11
Part #87517-KZ4-300
Bolt, shroud setting (Ref #12)
12
Part #90101-ML3-840
Screw, pan, 4x20 (Ref #14)
14
Part #93500-040200G
Гайка (Ref #15)
15
Part #94002-050-000-S
BOLT (Ref #16)
16
Part #96001-060-120-0
BOLT (Ref #16)
16
Part #96001-060-120-0
BOLT (Ref #16)
16
Part #96001-060-120-0
BOLT (Ref #16)
16
Part #96001-060-120-0
