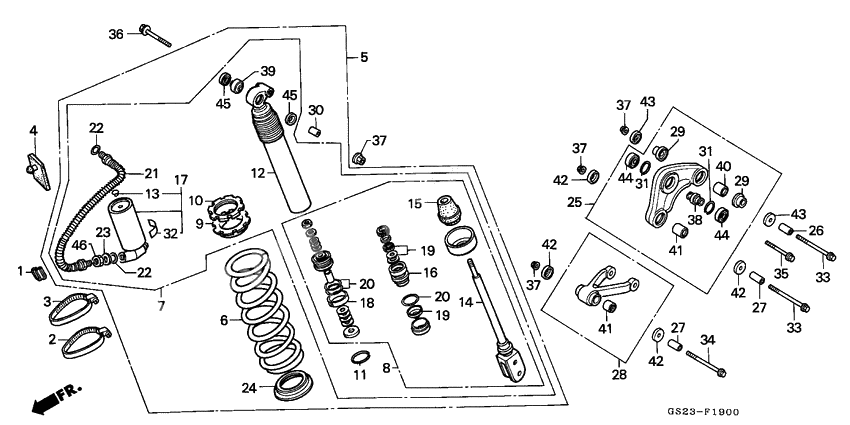

Rear cushion CR80RL/RM
Rear cushion CR80RL/RM
Rub.sub,tank set (Ref #1)
1
Part #50251-GC4-830
Band,sub tank (Ref #2)
2
Part #50252-GC4-600
Band,sub tank (Ref #3)
3
Part #50252-GC4-830
Rubber,sub tank m (Ref #4)
4
Part #50255-GC4-600
Cushion assy.,rr. (Ref #5)
5
Part #52400-GS2-931
Spring,rr.cushion (Ref #6)
6
Part #52401-GS2-003
Spring,rr.cushion (Ref #6)
6
Part #52401-GS2-701
Spring,rr.cushion (Ref #6)
6
Part #52402-GS2-751
Damper comp.,rr.( (Ref #7)
7
Part #52410-GS2-752
Rod comp.,piston (Ref #8)
8
Part #52421-GS2-701
ADJUSTER,SPRING (Ref #9)
9
Part #52422-GC4-701
NUT,ADJUSTER (Ref #10)
10
Part #52423-GC4-701
Кольцо стопорное (Ref #11)
11
Part #52424-GC4-701
Case comp.,damper (Ref #12)
12
Part #52425-GS2-701
Чашка воздушного клапана (Ref #13)
13
Part #52425-381-771
Rod comp (Ref #14)
14
Part #52426-GS2-003
RUBBER,STOPPER (Ref #15)
15
Part #52427-GC4-601
Case comp.,rod gu (Ref #16)
16
Part #52429-GS2-003
Sub tank assy.(sh (Ref #17)
17
Part #52430-GS2-751
RING,PISTON (Ref #18)
18
Part #52431-GC4-003
Oil seal set (Ref #19)
19
Part #52436-GC4-305
Oil seal set (Ref #19)
19
Part #52436-GC4-305
Oil seal set (Ref #19)
19
Part #52436-GC4-305
Oil seal set (Ref #19)
19
Part #52436-GC4-305
Кольцо (Ref #20)
20
Part #52437-GC4-305
Кольцо (Ref #20)
20
Part #52437-GC4-305
Кольцо (Ref #20)
20
Part #52437-GC4-305
Кольцо (Ref #20)
20
Part #52437-GC4-305
Hose comp.,joint (Ref #21)
21
Part #52440-GC4-601
O ring 1.9x9.8 (Ref #22)
22
Part #52441-MA0-003
O ring 1.9x9.8 (Ref #22)
22
Part #52441-MA0-003
O ring 1.9x9.8 (Ref #22)
22
Part #52441-MA0-003
O ring 1.9x9.8 (Ref #22)
22
Part #52441-MA0-003
Шайба,10MM (Ref #23)
23
Part #52442-HA2-003
Seat,rr,cush spg (Ref #24)
24
Part #52459-GC4-003
Arm assy.,cushion (Ref #25)
25
Part #52460-GS2-700
Collar cush arm (Ref #26)
26
Part #52464-GC4-830
Collar cush arm (Ref #27)
27
Part #52464-GS2-700
Collar cush arm (Ref #27)
27
Part #52464-GS2-700
Collar cush arm (Ref #27)
27
Part #52464-GS2-700
Collar cush arm (Ref #27)
27
Part #52464-GS2-700
Rod assy.,cush.co (Ref #28)
28
Part #52470-GS2-700
Втулка (Ref #29)
29
Part #52472-KA3-831
Втулка (Ref #29)
29
Part #52472-KA3-831
Втулка (Ref #29)
29
Part #52472-KA3-831
Втулка (Ref #29)
29
Part #52472-KA3-831
Collar, cushion (Ref #30)
30
Part #52486-GS2-700
Кольцо стопорное (Ref #31)
31
Part #52487-GC4-830
Кольцо стопорное (Ref #31)
31
Part #52487-GC4-830
Кольцо стопорное (Ref #31)
31
Part #52487-GC4-830
Кольцо стопорное (Ref #31)
31
Part #52487-GC4-830
Label,rr.damper w (Ref #32)
32
Part #87516-MN1-771
Болт (Ref #33)
33
Part #90129-KAS-900
Болт (Ref #33)
33
Part #90129-KAS-900
Болт (Ref #33)
33
Part #90129-KAS-900
Болт (Ref #33)
33
Part #90129-KAS-900
Болт (Ref #34)
34
Part #90151-MG3-000
Болт (Ref #35)
35
Part #90153-GC4-731
Болт (Ref #36)
36
Part #90153-KK0-000
Needle brg (Ref #38)
38
Part #91074-GS2-701
Bearing (16x22x12) (Ref #39)
39
Part #91077-GS2-702
Needle brg (Ref #40)
40
Part #91079-GC4-831
Needle brg (Ref #41)
41
Part #91079-GS2-701
Needle brg (Ref #41)
41
Part #91079-GS2-701
Needle brg (Ref #41)
41
Part #91079-GS2-701
Needle brg (Ref #41)
41
Part #91079-GS2-701
Валик (Ref #43)
43
Part #91262-KA3-831
Валик (Ref #43)
43
Part #91262-KA3-831
Валик (Ref #43)
43
Part #91262-KA3-831
Валик (Ref #43)
43
Part #91262-KA3-831
Dust seal,cush.ar (Ref #44)
44
Part #91351-GC4-832
Dust seal,cush.ar (Ref #44)
44
Part #91351-GC4-832
Dust seal,cush.ar (Ref #44)
44
Part #91351-GC4-832
Dust seal,cush.ar (Ref #44)
44
Part #91351-GC4-832
Dust seal, rr. (Ref #44)
44
Part #91351-GC4-831
Dust seal, rr. (Ref #44)
44
Part #91351-GC4-831
Dust seal, rr. (Ref #44)
44
Part #91351-GC4-831
Dust seal, rr. (Ref #44)
44
Part #91351-GC4-831
Dust seal, shock (Ref #45)
45
Part #91351-GS2-701
Dust seal, shock (Ref #45)
45
Part #91351-GS2-701
Dust seal, shock (Ref #45)
45
Part #91351-GS2-701
Dust seal, shock (Ref #45)
45
Part #91351-GS2-701
Гайка (Ref #46)
46
Part #94002-120-000-S
-
3390151-GC4-831
Bolt,flange,10x70
2Replaced by 90129-KAS-900 Доступно: Нет в наличии
-
4291262-GS2-701
Seal,cush arm piv
4Replaced by 91262-GS2-702 Доступно: Нет в наличии
