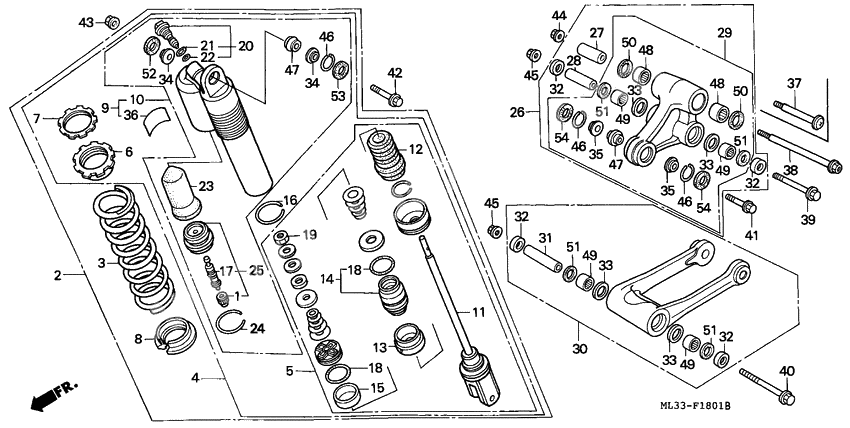

Rear cushion CR500RM/RN/RP
Rear cushion CR500RM/RN/RP
Чашка воздушного клапана (Ref #1)
1
Part #51453-KK0-004
Cushion assy.,rr. (Ref #2)
2
Part #52400-ML3-891
Пружина (Ref #3)
3
Part #52403-ML3-881
Пружина (Ref #3)
3
Part #52403-KZ4-841
Пружина (Ref #3)
3
Part #52401-ML3-761
Damper comp.,rr.( (Ref #4)
4
Part #52410-ML3-891
Rod comp.,piston (Ref #5)
5
Part #52421-ML3-891
Пружина (Ref #6)
6
Part #52422-KS6-701
Nut, adjuster (Ref #7)
7
Part #52423-KS6-701
Пружина (Ref #8)
8
Part #52424-KZ3-731
Case assy,sub (Ref #10)
10
Part #52425-KZ4-405
ROD (Ref #11)
11
Part #52426-ML3-761
Rubber, bumper (Ref #12)
12
Part #52427-KZ4-701
Cap, case (Ref #13)
13
Part #52428-KS6-701
Case, rod guide (Ref #14)
14
Part #52429-KS6-831
Кольцо поршневое (Ref #15)
15
Part #52431-KS6-831
Кольцо (Ref #16)
16
Part #52435-ML3-791
Core, valve (Ref #17)
17
Part #52437-KA3-731
Кольцо (Ref #18)
18
Part #52437-KS6-305
Кольцо (Ref #18)
18
Part #52437-KS6-305
Кольцо (Ref #18)
18
Part #52437-KS6-305
Кольцо (Ref #18)
18
Part #52437-KS6-305
Nut, hex. (12mm) (Ref #19)
19
Part #52438-KA3-731
Регулятор (Ref #20)
20
Part #52440-KZ3-731
Прокладка (Ref #21)
21
Part #52447-KS6-701
Прокладка (Ref #22)
22
Part #52448-KZ4-003
BLADDER (Ref #23)
23
Part #52451-KZ4-003
Кольцо (Ref #24)
24
Part #52452-KZ4-003
Cap, bladder (Ref #25)
25
Part #52453-KZ4-003
Arm, shock absorber (Ref #26)
26
Part #52460-KZ3-730
COLLAR (Ref #27)
27
Part #52463-KZ3-730
Collar, shock arm (Ref #28)
28
Part #52464-KZ3-730
ROD ASSY (Ref #30)
30
Part #52470-KZ3-730
Collar, conn rod (Ref #31)
31
Part #52473-KZ3-730
Collar, shock pivot (Ref #34)
34
Part #52486-KZ3-730
Collar, shock pivot (Ref #34)
34
Part #52486-KZ3-730
Collar, shock pivot (Ref #34)
34
Part #52486-KZ3-730
Collar, shock pivot (Ref #34)
34
Part #52486-KZ3-730
Label, rr. (Ref #36)
36
Part #87516-KZ4-671
Bolt, flg (14x108) (Ref #37)
37
Part #90128-KZ4-010
Болт (Ref #39)
39
Part #90129-KZ4-010
Bolt, flg (12x118.5) (Ref #40)
40
Part #90130-KZ3-700
Болт (Ref #41)
41
Part #90153-KS7-830
Болт (Ref #42)
42
Part #90153-KK0-000
Nut, axle, 10mm (Ref #43)
43
Part #90304-GA6-003
Nut, flange (12mm) (Ref #44)
44
Part #90306-181-761
Bearing (10) (Ref #47)
47
Part #91074-KZ4-901
Bearing (10) (Ref #47)
47
Part #91074-KZ4-901
Bearing (10) (Ref #47)
47
Part #91074-KZ4-901
Bearing (10) (Ref #47)
47
Part #91074-KZ4-901
Bearing (22x28x16) (Ref #48)
48
Part #91078-KZ3-731
Bearing (22x28x16) (Ref #48)
48
Part #91078-KZ3-731
Bearing (22x28x16) (Ref #48)
48
Part #91078-KZ3-731
Bearing (22x28x16) (Ref #48)
48
Part #91078-KZ3-731
Dust seal (22x28x5) (Ref #50)
50
Part #91254-KS7-831
Dust seal (22x28x5) (Ref #50)
50
Part #91254-KS7-831
Dust seal (22x28x5) (Ref #50)
50
Part #91254-KS7-831
Dust seal (22x28x5) (Ref #50)
50
Part #91254-KS7-831
Dust seal, shock (Ref #52)
52
Part #91351-GS2-701
Dust seal, shock (Ref #53)
53
Part #91351-KZ3-731
-
4490306-KA4-003
Nut, flange (12mm)
1Replaced by 90306-181-761 Доступно: Нет в наличии
