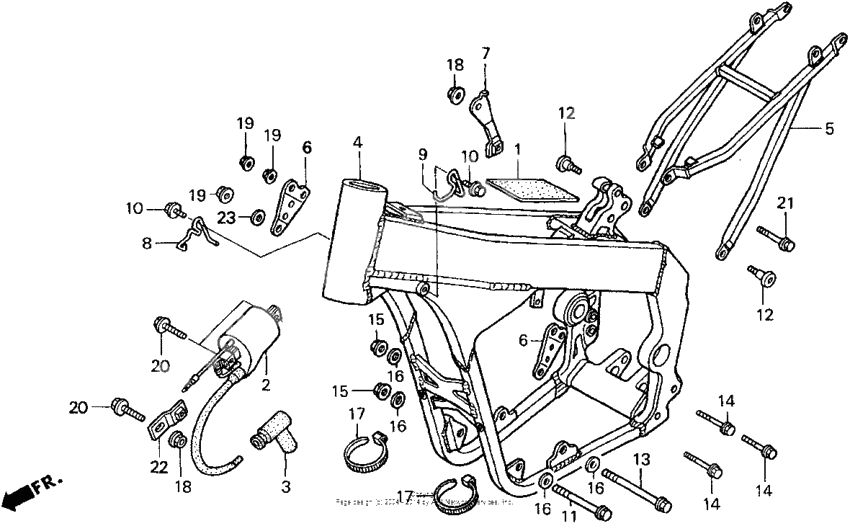

Frame
Frame
COVER (Ref #1)
1
Part #30420-KZ3-B00
Катушка зажигания (Ref #2)
2
Part #30500-KZ4-J01
Cap assy. (Ref #3)
3
Part #30700-KA5-771
Frame (Ref #4)
4
Part #50100-KZ4-J00
Frame, rr (Ref #5)
5
Part #50200-KZ3-J00
Bracket, head hanger (Ref #6)
6
Part #50407-KZ4-J00
Bracket, head hanger (Ref #6)
6
Part #50407-KZ4-J00
Bracket, head hanger (Ref #6)
6
Part #50407-KZ4-J00
Bracket, head hanger (Ref #6)
6
Part #50407-KZ4-J00
Bracket, oil cup (Ref #7)
7
Part #50409-KZ4-J00
Переходник (Ref #8)
8
Part #50607-KZ4-J00
Guide (Ref #9)
9
Part #50608-KZ4-J00
Болт (Ref #10)
10
Part #90004-GHB-610
Болт (Ref #10)
10
Part #90004-GHB-610
Болт (Ref #10)
10
Part #90004-GHB-610
Болт (Ref #10)
10
Part #90004-GHB-610
Болт (Ref #11)
11
Part #90101-KZ4-J00
Bolt, special (8mm) (Ref #12)
12
Part #90102-KZ3-B00
Bolt, special (8mm) (Ref #12)
12
Part #90102-KZ3-B00
Bolt, special (8mm) (Ref #12)
12
Part #90102-KZ3-B00
Bolt, special (8mm) (Ref #12)
12
Part #90102-KZ3-B00
Болт (Ref #13)
13
Part #90102-KZ4-J00
Nut, u, 8mm (fuse rashi) (Ref #15)
15
Part #90309-ML3-791
Nut, u, 8mm (fuse rashi) (Ref #15)
15
Part #90309-ML3-791
Nut, u, 8mm (fuse rashi) (Ref #15)
15
Part #90309-ML3-791
Nut, u, 8mm (fuse rashi) (Ref #15)
15
Part #90309-ML3-791
Band, wire (black) (Ref #17)
17
Part #90652-KT1-771
Band, wire (black) (Ref #17)
17
Part #90652-KT1-771
Band, wire (black) (Ref #17)
17
Part #90652-KT1-771
Band, wire (black) (Ref #17)
17
Part #90652-KT1-771
Гайка (Ref #18)
18
Part #94050-06000
BOLT (Ref #20)
20
Part #96001-060-200-0
BOLT (Ref #20)
20
Part #96001-060-200-0
BOLT (Ref #20)
20
Part #96001-060-200-0
BOLT (Ref #20)
20
Part #96001-060-200-0
Болт (Ref #21)
21
Part #96400-0806000
