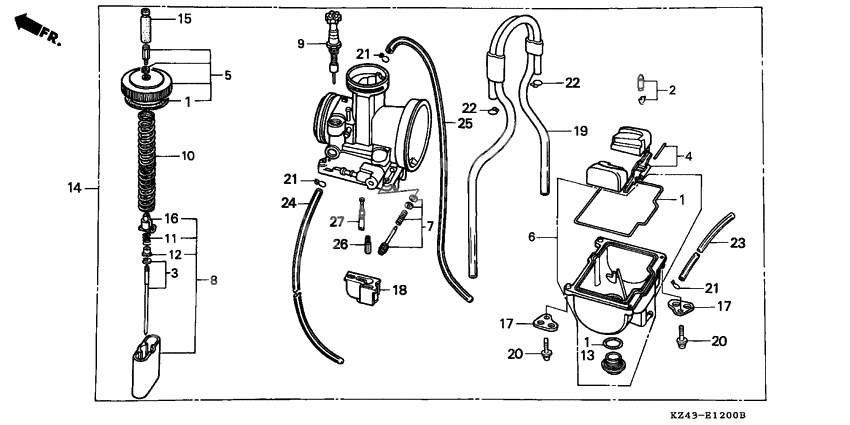

Carburetor assy
Carburetor assy
Valve set, float (Ref #2)
2
Part #16011-KA3-741
Ndl, jet (r1368ms) (Ref #3)
3
Part #16012-KZ3-690
FLOAT SET (Ref #4)
4
Part #16013-HA2-671
Top set (Ref #5)
5
Part #16014-KA3-761
Chamber set, float (Ref #6)
6
Part #16015-VM0-004
Screw set a (Ref #7)
7
Part #16016-ML3-910
Valve set, throttle (Ref #8)
8
Part #16022-KZ4-A20
Valve set, starter (Ref #9)
9
Part #16046-KA3-761
Пружина (Ref #10)
10
Part #16050-KA3-761
Пружина (Ref #11)
11
Part #16051-KA3-761
Colr, spring setting (Ref #12)
12
Part #16066-KA3-761
Packing, cock (Ref #13)
13
Part #16075-GHB-B00
Карбюратор (Ref #14)
14
Part #16100-KZ4-B00
Крышка уплотнения (Ref #15)
15
Part #16118-166-004
Держатель кабеля (Ref #16)
16
Part #16137-KA3-761
Крепёж (Ref #17)
17
Part #16179-KZ4-690
Крепёж (Ref #17)
17
Part #16179-KZ4-690
Крепёж (Ref #17)
17
Part #16179-KZ4-690
Крепёж (Ref #17)
17
Part #16179-KZ4-690
Plate, buffer (Ref #18)
18
Part #16185-KA3-761
Tube, air vent (Ref #19)
19
Part #16199-KZ4-620
Screw,washer 4x12 (Ref #20)
20
Part #93892-040-160-8
Screw,washer 4x12 (Ref #20)
20
Part #93892-040-160-8
Screw,washer 4x12 (Ref #20)
20
Part #93892-040-160-8
Screw,washer 4x12 (Ref #20)
20
Part #93892-040-160-8
Clip, tube (b7) (Ref #22)
22
Part #9500202079
Clip, tube (b7) (Ref #22)
22
Part #9500202079
Clip, tube (b7) (Ref #22)
22
Part #9500202079
Clip, tube (b7) (Ref #22)
22
Part #9500202079
Трубка перелива (Ref #23)
23
Part #16199-KZ3-505
Tube,4x7x390 (Ref #24)
24
Part #16198-KZ3-P00
Jet, main (#172) (Ref #26)
26
Part #99113-GHB1720
Жиклер (Ref #27)
27
Part #99103-4400500
-
1516118-GHB-600
Крышка уплотнения
1Replaced by 16118-166-004 Доступно: Нет в наличии
