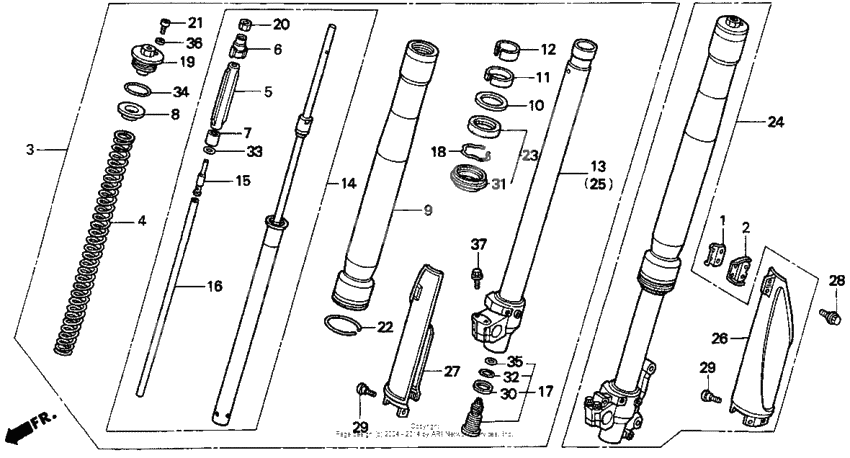

Front fork 95-97
Front fork 95-97
Clamp a, fr. (Ref #1)
1
Part #45461-KA3-710
Clamp b, fr. (Ref #2)
2
Part #45462-KA3-710
Fork, r. fr. *r177r* (Ref #3)
3
Part #51400-KZ4-601ZA
Spring, fr. (0.41) (Ref #4)
4
Part #51403-KZ4-711
Пружина (Ref #4)
4
Part #51401-MAC-681
Направляющая (Ref #5)
5
Part #51404-KZ4-711
COLLAR (Ref #6)
6
Part #51405-KZ4-711
Пружина (Ref #8)
8
Part #51408-KZ4-711
Tube (outer) (Ref #9)
9
Part #51410-KZ4-601
Ring, back-up (Ref #10)
10
Part #51412-KZ4-711
Bush, guide (Ref #11)
11
Part #51414-KZ4-711
Bush, slider (Ref #12)
12
Part #51415-KZ4-712
Pipe, r. slide (Ref #13)
13
Part #51425-KZ4-601
Damper, fr. (Ref #14)
14
Part #51430-KZ3-601
Плунжер (Ref #15)
15
Part #51436-KZ4-711
Colr, rebound needle (Ref #16)
16
Part #51437-KZ4-711
Bolt, center (Ref #17)
17
Part #51441-KZ3-601
Ring, oil seal stop (Ref #18)
18
Part #51447-KZ4-711
Bolt assy., fr. fork (Ref #19)
19
Part #51450-KZ4-711
Nut, lock (Ref #20)
20
Part #51451-KZ4-711
Bolt, plug (Ref #21)
21
Part #51456-KZ4-711
Ring, wear (Ref #22)
22
Part #51476-KZ4-711
Seal set, fr. fork (Ref #23)
23
Part #51490-KZ4-305
Fork, l. fr. *r177r* (Ref #24)
24
Part #51500-KZ4-601ZA
Pipe, l. slide (Ref #25)
25
Part #51525-KZ4-601
Protr, l. *r177r* (Ref #26)
26
Part #51610-ML3-600ZB
PROTECTOR,FR FORK (Ref #27)
27
Part #51620-ML3-601ZA
Bolt, flange, 6mm (Ref #28)
28
Part #90113-KZ3-000
Bolt, protector (Ref #29)
29
Part #90113-MAC-680
Bolt, protector (Ref #29)
29
Part #90113-MAC-680
Bolt, protector (Ref #29)
29
Part #90113-MAC-680
Bolt, protector (Ref #29)
29
Part #90113-MAC-680
Шайба специальная (Ref #30)
30
Part #90544-KZ4-711
DUST SEAL (Ref #31)
31
Part #91254-KZ4-711
Прокладка (Ref #32)
32
Part #91256-KZ4-711
Прокладка (Ref #33)
33
Part #91257-KZ4-711
Прокладка (Ref #34)
34
Part #91258-KZ4-711
Прокладка (Ref #35)
35
Part #91259-KZ4-711
Прокладка (Ref #36)
36
Part #91260-KZ4-711
BOLT (Ref #37)
37
Part #95701-080-400-8
