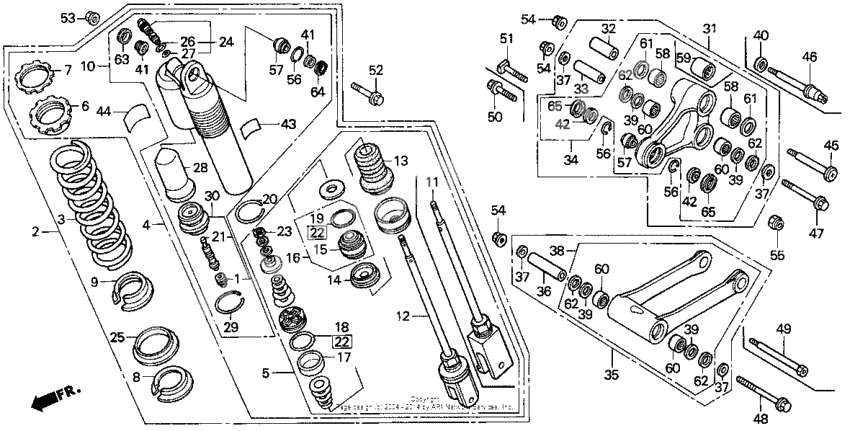

Rear shock absorber 91-94
Rear shock absorber 91-94
Чашка воздушного клапана (Ref #1)
1
Part #51453-KK0-004
Shock assy., rr. (Ref #2)
2
Part #52400-KZ4-901
Пружина (Ref #3)
3
Part #52403-KZ4-831
Пружина (Ref #3)
3
Part #52401-KZ4-701
Пружина (Ref #3)
3
Part #52402-KZ4-811
Damper, rr. (Ref #4)
4
Part #52410-KZ4-901
Rod, piston (Ref #5)
5
Part #52421-KZ4-901
Пружина (Ref #6)
6
Part #52422-KS6-701
Nut, adjuster (Ref #7)
7
Part #52423-KS6-701
Пружина (Ref #8)
8
Part #52424-KS6-701
Case assy., sub (Ref #10)
10
Part #52425-KZ4-901
ROD (Ref #12)
12
Part #52426-KZ4-901
Rubber, bumper (Ref #13)
13
Part #52427-KZ4-901
Cap, case (Ref #14)
14
Part #52428-KZ4-901
Case, rod guide (Ref #16)
16
Part #52429-KZ4-901
Кольцо поршневое (Ref #17)
17
Part #52431-KZ4-901
Прокладка (Ref #18)
18
Part #52432-KZ4-901
Прокладка (Ref #19)
19
Part #52434-KZ4-901
Кольцо (Ref #20)
20
Part #52452-KZ4-003
Core, valve (Ref #21)
21
Part #52437-KA3-731
Nut, hex. (12mm) (Ref #23)
23
Part #52438-KA3-731
Регулятор (Ref #24)
24
Part #52440-ML3-601
Washer, spring seat (Ref #25)
25
Part #52445-KT1-671
Прокладка (Ref #26)
26
Part #52447-KS6-701
Прокладка (Ref #27)
27
Part #52448-KZ4-003
BLADDER (Ref #28)
28
Part #52451-KZ4-901
Cap, bladder (Ref #30)
30
Part #52453-KZ4-003
COLLAR (Ref #32)
32
Part #52463-KZ3-860
Arm set, shock (Ref #34)
34
Part #52465-KZ4-305
Collar, conn rod (Ref #36)
36
Part #52473-KZ3-860
Rod set (Ref #38)
38
Part #52475-KZ4-305
Collar, shock pivot (Ref #41)
41
Part #52486-KZ3-730
Collar, shock pivot (Ref #41)
41
Part #52486-KZ3-730
Collar, shock pivot (Ref #41)
41
Part #52486-KZ3-730
Collar, shock pivot (Ref #41)
41
Part #52486-KZ3-730
Collar, shock pivot (Ref #42)
42
Part #52486-ML3-790
Collar, shock pivot (Ref #42)
42
Part #52486-ML3-790
Collar, shock pivot (Ref #42)
42
Part #52486-ML3-790
Collar, shock pivot (Ref #42)
42
Part #52486-ML3-790
Label, rr. (Ref #43)
43
Part #87516-KZ1-600
Bolt (15x202) (Ref #45)
45
Part #90128-ML3-600
Bolt (15x87) (Ref #47)
47
Part #90129-KZ3-861
Bolt (15x109.5) (Ref #48)
48
Part #90130-KZ3-861
Болт (Ref #50)
50
Part #90153-KS7-830
Болт (Ref #52)
52
Part #90153-KK0-000
Nut, axle, 10mm (Ref #53)
53
Part #90304-GA6-003
Bearing (10) (Ref #57)
57
Part #91074-KZ4-901
Bearing (10) (Ref #57)
57
Part #91074-KZ4-901
Bearing (10) (Ref #57)
57
Part #91074-KZ4-901
Bearing (10) (Ref #57)
57
Part #91074-KZ4-901
Bearing (22x28x16) (Ref #58)
58
Part #91078-KZ3-731
Bearing (22x28x16) (Ref #58)
58
Part #91078-KZ3-731
Bearing (22x28x16) (Ref #58)
58
Part #91078-KZ3-731
Bearing (22x28x16) (Ref #58)
58
Part #91078-KZ3-731
Dust seal (22x28x5) (Ref #61)
61
Part #91254-KS7-831
Dust seal (22x28x5) (Ref #61)
61
Part #91254-KS7-831
Dust seal (22x28x5) (Ref #61)
61
Part #91254-KS7-831
Dust seal (22x28x5) (Ref #61)
61
Part #91254-KS7-831
Dust seal, shock (Ref #63)
63
Part #91351-GS2-701
Dust seal, shock (Ref #64)
64
Part #91351-KZ3-731
