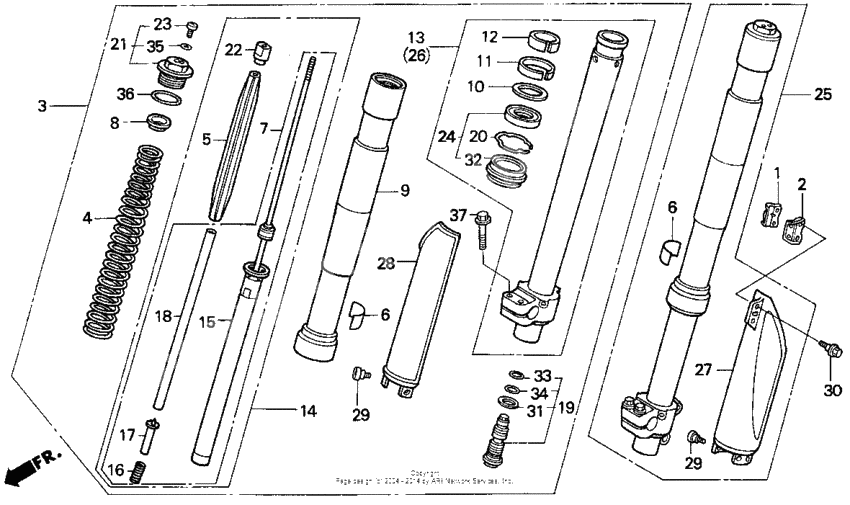

Front fork 92-93
Front fork 92-93
Clamp a, fr. (Ref #1)
1
Part #45461-KA3-710
Clamp b, fr. (Ref #2)
2
Part #45462-KA3-710
Fork assy., r. fr. (Ref #3)
3
Part #51400-KZ4-901
Spring, fr. fork (Ref #4)
4
Part #51403-ML3-801
Spring, fr. fork (Ref #4)
4
Part #51401-ML3-791
Spring, fr. fork (Ref #4)
4
Part #51401-KZ4-681
Направляющая (Ref #5)
5
Part #51404-ML3-791
LABEL (Ref #6)
6
Part #51405-ML3-911
LABEL (Ref #6)
6
Part #51405-ML3-911
LABEL (Ref #6)
6
Part #51405-ML3-911
LABEL (Ref #6)
6
Part #51405-ML3-911
Пружина (Ref #8)
8
Part #51408-KZ3-731
Pipe, fr. fork (Ref #9)
9
Part #51410-ML3-601
Ring, back-up (Ref #10)
10
Part #51412-KA4-711
Bush, guide (Ref #11)
11
Part #51414-ML3-791
Bush, slider (Ref #12)
12
Part #51415-ML3-791
Pipe, r. slide (Ref #13)
13
Part #51420-ML3-601
Damper, fr. (Ref #14)
14
Part #51430-KZ4-891
Пружина (Ref #16)
16
Part #51435-ML3-601
Needle, rebound (Ref #17)
17
Part #51436-ML3-601
Colr, rebound needle (Ref #18)
18
Part #51437-ML3-601
Bolt, center (Ref #19)
19
Part #51441-ML3-601
RING (Ref #20)
20
Part #51447-KA4-711
Bolt assy., fr. fork (Ref #21)
21
Part #51450-ML3-791
Nut, lock (Ref #22)
22
Part #51451-KZ3-731
Bolt, plug (Ref #23)
23
Part #51456-KZ3-731
Seal set, fr. fork (Ref #24)
24
Part #51490-ML3-305
Fork assy., l. fr. (Ref #25)
25
Part #51500-KZ4-901
Pipe, l. slide (Ref #26)
26
Part #51520-ML3-601
Protr, l. *r177r* (Ref #27)
27
Part #51610-ML3-600ZB
PROTECTOR,FR FORK (Ref #28)
28
Part #51620-ML3-601ZA
Bolt, disk (6x13) (Ref #29)
29
Part #90106-KZ3-000
Bolt, disk (6x13) (Ref #29)
29
Part #90106-KZ3-000
Bolt, disk (6x13) (Ref #29)
29
Part #90106-KZ3-000
Bolt, disk (6x13) (Ref #29)
29
Part #90106-KZ3-000
Bolt, flange, 6mm (Ref #30)
30
Part #90113-KZ3-000
Шайба специальная (Ref #31)
31
Part #90544-ML3-791
DUST SEAL (Ref #32)
32
Part #91254-ML3-791
Прокладка (Ref #33)
33
Part #91256-KZ3-731
Прокладка (Ref #34)
34
Part #91256-ML3-791
Прокладка (Ref #35)
35
Part #91301-KZ3-731
Прокладка (Ref #36)
36
Part #91356-ML3-791
Болт (Ref #37)
37
Part #96300-0804000
