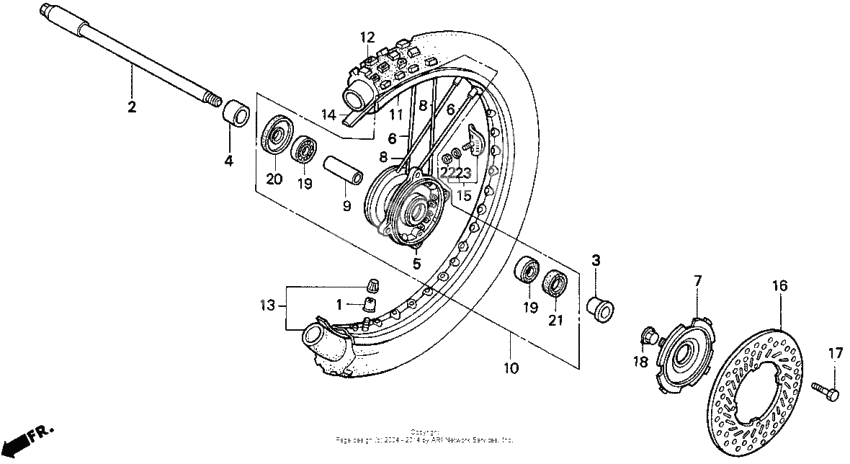

Front wheel 92-94
Front wheel 92-94
Cap, valve (Ref #1)
1
Part #42714-KA3-710
Axle, fr. wheel (Ref #2)
2
Part #44301-ML3-791
Collar, fr. wheel (Ref #3)
3
Part #44311-KAE-740
Collar, r. fr. wheel (Ref #4)
4
Part #44312-KS6-830
Hub, fr. wheel (Ref #5)
5
Part #44601-ML3-600
Spoke set a, fr. (Ref #6)
6
Part #44610-KZ4-405
Spoke set a, fr. (Ref #6)
6
Part #44610-KZ4-405
Spoke set a, fr. (Ref #6)
6
Part #44610-KZ4-405
Spoke set a, fr. (Ref #6)
6
Part #44610-KZ4-405
Cover, fr. hub (Ref #7)
7
Part #44610-ML3-790
Spoke set b, fr. (Ref #8)
8
Part #44611-KZ4-405
Spoke set b, fr. (Ref #8)
8
Part #44611-KZ4-405
Spoke set b, fr. (Ref #8)
8
Part #44611-KZ4-405
Spoke set b, fr. (Ref #8)
8
Part #44611-KZ4-405
Collar, fr (Ref #9)
9
Part #44620-ML3-790
Wheel sub-assy., fr. (Ref #10)
10
Part #44630-KZ4-405
Rim, fr. (21x1.60) (Ref #11)
11
Part #44701-ML3-791
Tire (80/100-21) (Ref #12)
12
Part #44711-ML3-911
Tube (2.75/3.00-21) (Ref #13)
13
Part #44712-446-631
Flap, tire (Ref #14)
14
Part #44713-KS6-641
Stopper, bead (1.60) (Ref #15)
15
Part #44715-MA0-770
Disk, fr. brake (Ref #16)
16
Part #45351-KV6-670
Bolt, disk (6x17) (Ref #17)
17
Part #90105-KAE-870
Nut, flange, 14mm (Ref #18)
18
Part #90201-GC4-000
Bearing (6003-sh2) (Ref #19)
19
Part #91065-KA3-832
Bearing (6003-sh2) (Ref #19)
19
Part #91065-KA3-832
Bearing (6003-sh2) (Ref #19)
19
Part #91065-KA3-832
Bearing (6003-sh2) (Ref #19)
19
Part #91065-KA3-832
Dust seal (22x50x5) (Ref #20)
20
Part #91254-KA3-831
Dust seal (24x37x7) (Ref #21)
21
Part #91259-KS6-831
Гайка (Ref #22)
22
Part #94001-080-000-S
Шайба (Ref #23)
23
Part #94111-08000
