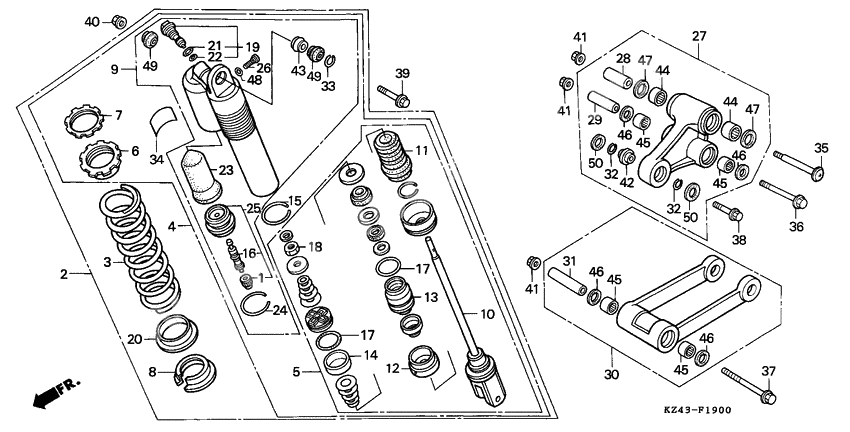

Rear cushion CR125RL
Rear cushion CR125RL
Чашка воздушного клапана (Ref #1)
1
Part #51453-KK0-004
Shock absorber, rr. (Ref #2)
2
Part #52400-KZ4-771
Пружина (Ref #3)
3
Part #52403-KZ4-821
Пружина (Ref #3)
3
Part #52401-KZ4-701
Пружина (Ref #3)
3
Part #52402-KZ4-811
Damper, rr. (Ref #4)
4
Part #52410-KZ4-771
Rod, piston (Ref #5)
5
Part #52421-KZ4-701
Пружина (Ref #6)
6
Part #52422-KS6-701
Nut, adjuster (Ref #7)
7
Part #52423-KS6-701
Пружина (Ref #8)
8
Part #52424-KS6-701
Case assy., sub (Ref #9)
9
Part #52425-KZ4-701
ROD (Ref #10)
10
Part #52426-KZ4-003
Rubber, bumper (Ref #11)
11
Part #52427-KZ4-701
Cap, case (Ref #12)
12
Part #52428-KS6-701
Case, rod guide (Ref #13)
13
Part #52429-KS6-831
Кольцо поршневое (Ref #14)
14
Part #52431-KS6-831
Кольцо (Ref #15)
15
Part #52435-ML3-791
Core, valve (Ref #16)
16
Part #52437-KA3-731
Кольцо (Ref #17)
17
Part #52437-KS6-305
Кольцо (Ref #17)
17
Part #52437-KS6-305
Кольцо (Ref #17)
17
Part #52437-KS6-305
Кольцо (Ref #17)
17
Part #52437-KS6-305
Nut, hex. (12mm) (Ref #18)
18
Part #52438-KA3-731
Регулятор (Ref #19)
19
Part #52440-KZ4-701
Washer, spring seat (Ref #20)
20
Part #52445-KT1-671
Прокладка (Ref #21)
21
Part #52447-KS6-701
Прокладка (Ref #22)
22
Part #52448-KZ4-003
BLADDER (Ref #23)
23
Part #52451-KZ4-003
Кольцо (Ref #24)
24
Part #52452-KZ4-003
Cap, bladder (Ref #25)
25
Part #52453-KZ4-003
Bolt, drain (Ref #26)
26
Part #52454-KZ4-003
Arm, shock absorber (Ref #27)
27
Part #52460-KZ4-020
COLLAR (Ref #28)
28
Part #52463-KZ4-000
Collar, cushion arm (Ref #29)
29
Part #52464-KZ4-000
Rod, shock absorber (Ref #30)
30
Part #52470-KZ4-020
COLLAR (Ref #31)
31
Part #52473-KZ4-000
Кольцо (Ref #32)
32
Part #52487-KN5-000
Кольцо (Ref #32)
32
Part #52487-KN5-000
Кольцо (Ref #32)
32
Part #52487-KN5-000
Кольцо (Ref #32)
32
Part #52487-KN5-000
Кольцо (Ref #33)
33
Part #52487-KS6-701
Label, rr. (Ref #34)
34
Part #87516-KZ4-671
Label,rr.damper w (Ref #34)
34
Part #87516-KS6-780
Bolt, flg (14x108) (Ref #35)
35
Part #90128-KZ4-010
Болт (Ref #36)
36
Part #90129-KZ4-010
Bolt, flg (12x113) (Ref #37)
37
Part #90130-KZ4-010
Болт (Ref #38)
38
Part #90153-KS7-830
Болт (Ref #39)
39
Part #90153-KK0-000
Nut, axle, 10mm (Ref #40)
40
Part #90304-GA6-003
Bearing (10) (Ref #42)
42
Part #91074-KS7-831
Bearing (10mm) (Ref #43)
43
Part #91077-KS6-701
Bearing (22x28x16) (Ref #44)
44
Part #91078-KS7-836
Bearing (22x28x16) (Ref #44)
44
Part #91078-KS7-836
Bearing (22x28x16) (Ref #44)
44
Part #91078-KS7-836
Bearing (22x28x16) (Ref #44)
44
Part #91078-KS7-836
Dust seal (22x30x5) (Ref #47)
47
Part #91262-KS7-831
Dust seal (22x30x5) (Ref #47)
47
Part #91262-KS7-831
Dust seal (22x30x5) (Ref #47)
47
Part #91262-KS7-831
Dust seal (22x30x5) (Ref #47)
47
Part #91262-KS7-831
Прокладка (Ref #48)
48
Part #91310-MJ1-672
Dust seal, rr. shock (Ref #49)
49
Part #91351-KS6-701
Dust seal, rr. shock (Ref #49)
49
Part #91351-KS6-701
Dust seal, rr. shock (Ref #49)
49
Part #91351-KS6-701
Dust seal, rr. shock (Ref #49)
49
Part #91351-KS6-701
Dust seal, shock (Ref #50)
50
Part #91351-KS7-832
Dust seal, shock (Ref #50)
50
Part #91351-KS7-832
Dust seal, shock (Ref #50)
50
Part #91351-KS7-832
Dust seal, shock (Ref #50)
50
Part #91351-KS7-832
-
2752460-KZ4-000
Arm, shock absorber
1Replaced by 52460-KZ4-020 Доступно: Нет в наличии
-
2752460-KZ4-010
Arm, shock absorber
1Replaced by 52460-KZ4-020 Доступно: Нет в наличии
-
4190306-KA4-003
Nut, flange (12mm)
3Replaced by 90306-181-761 Доступно: Нет в наличии
-
4491078-KS7-835
Bearing (22x28x16)
2Replaced by 91078-KS7-836 Доступно: Нет в наличии
-
4491078-KS7-834
Bearing (22x28x16)
2Replaced by 91078-KS7-836 Доступно: Нет в наличии
-
4591079-KS7-834
Bearing (20x26x20)
4Replaced by 91079-KZ3-731 Доступно: Нет в наличии
-
4591079-KS7-835
Bearing (20x26x20)
4Replaced by 91079-KZ3-731 Доступно: Нет в наличии
