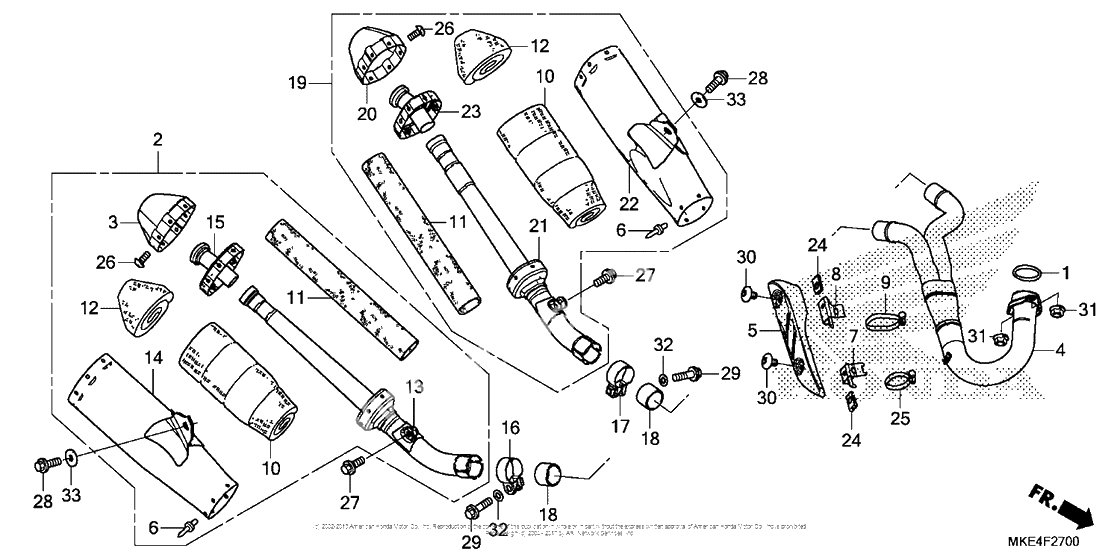

Выхлопная система
Выхлопная система
Прокладка (Ref #1)
1
Part #18291-MEB-670
Muffler assy., r. (Ref #2)
2
Part #18300-MKE-A01
Cover, r. end (Ref #3)
3
Part #18318-MKE-A00
Pipe, ex. (Ref #4)
4
Part #18320-MKE-A00
Protector, ex. pipe (Ref #5)
5
Part #18323-MKE-A00
Rivet, blind (3.2) (Ref #6)
6
Part #18326-KRN-A00
STAY (Ref #7)
7
Part #18327-KRN-A40
Stay, rr. (Ref #8)
8
Part #18328-MKE-A00
Band, ex. protector (Ref #9)
9
Part #18329-MEN-A30
Pack (Ref #10)
10
Part #18334-MKE-A00
Wool, sus (Ref #11)
11
Part #18336-MKE-A00
Wool b, glass (Ref #12)
12
Part #18337-KRN-850
Muffler, r. fr. (Ref #13)
13
Part #18360-MKE-A00
Body, r. muffler (Ref #14)
14
Part #18361-MKE-A01
SEPARATOR (Ref #15)
15
Part #18362-MKE-A00
Band, r. ex. pipe (Ref #16)
16
Part #18373-ML4-003
Band, l. ex. pipe (Ref #17)
17
Part #18374-ML4-003
Packing,muffler (Ref #18)
18
Part #18391-ML8-000
Muffler assy., l. (Ref #19)
19
Part #18400-MKE-A01
Cover, l. end (Ref #20)
20
Part #18418-MKE-A00
Muffler, l. fr. (Ref #21)
21
Part #18460-MKE-A00
Body, l. muffler (Ref #22)
22
Part #18461-MKE-A01
SEPARATOR (Ref #23)
23
Part #18462-MKE-A00
Nut, spring, 6mm (Ref #24)
24
Part #19508-KA3-710
Clamp, radiator hose (Ref #25)
25
Part #19509-MM5-003
Bolt, special (5x12) (Ref #26)
26
Part #90101-MKE-A00
Bolt (8x20) (Ref #27)
27
Part #90109-MEN-A30
BOLT, FLANGE (8X25) (Ref #28)
28
Part #90109-MKE-A00
Болт (Ref #29)
29
Part #90124-MEB-770
Bolt, special (6mm) (Ref #30)
30
Part #90170-MEB-670
Гайка (Ref #31)
31
Part #94050-08000
Шайба (Ref #32)
32
Part #94102-08800
Washer, plain, 8mm (Ref #33)
33
Part #9410308000
