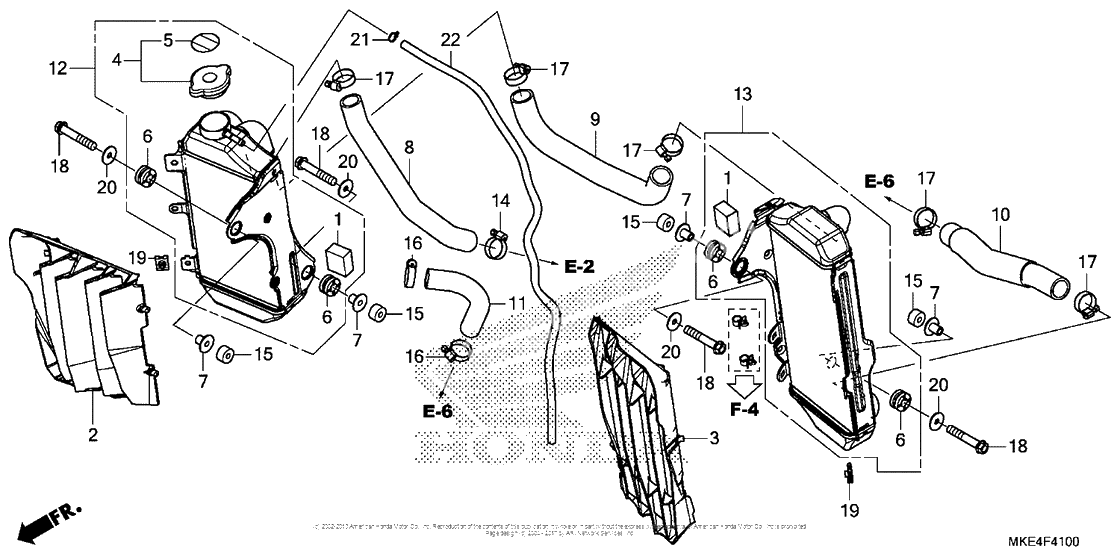

Радиатор
Радиатор
Rubber, radiator (Ref #1)
1
Part #19021-MEN-A30
Grille, r. radiator (Ref #2)
2
Part #19033-MKE-A01
Grille, l. radiator (Ref #3)
3
Part #19034-MKE-A01
Стакан карбюратора (Ref #4)
4
Part #19037-GEE-710
LABEL (Ref #5)
5
Part #19046-PAA-A00
Rubber, radiator mounting (Ref #6)
6
Part #19051-KA3-830
COLLAR (Ref #7)
7
Part #19052-MAC-680
Hose a, water (Ref #8)
8
Part #19061-MKE-A00
Hose b, water (Ref #9)
9
Part #19062-MKE-A00
Hose c, water (Ref #10)
10
Part #19063-MKE-A00
Hose d, water (Ref #11)
11
Part #19064-MKE-A00
Radiator assy., r. (Ref #12)
12
Part #19100-MKE-305
Radiator assy., l. (Ref #13)
13
Part #19150-MKE-305
Clamp (d27) (Ref #14)
14
Part #19502-MKE-A00
Clamp (25mm) (Ref #16)
16
Part #19504-KY1-003
Clamp b, water hose (Ref #17)
17
Part #19506-KS6-700
Bolt (6x25) (Ref #18)
18
Part #90109-MEN-A70
Nut, clip (6mm) (Ref #19)
19
Part #90201-KPR-901
Шайба (Ref #20)
20
Part #90403-KA3-830
CLIP (Ref #21)
21
Part #95002-02080
Bulk hose (6x9x1000) (Ref #22)
22
Part #95003-140-0110M
