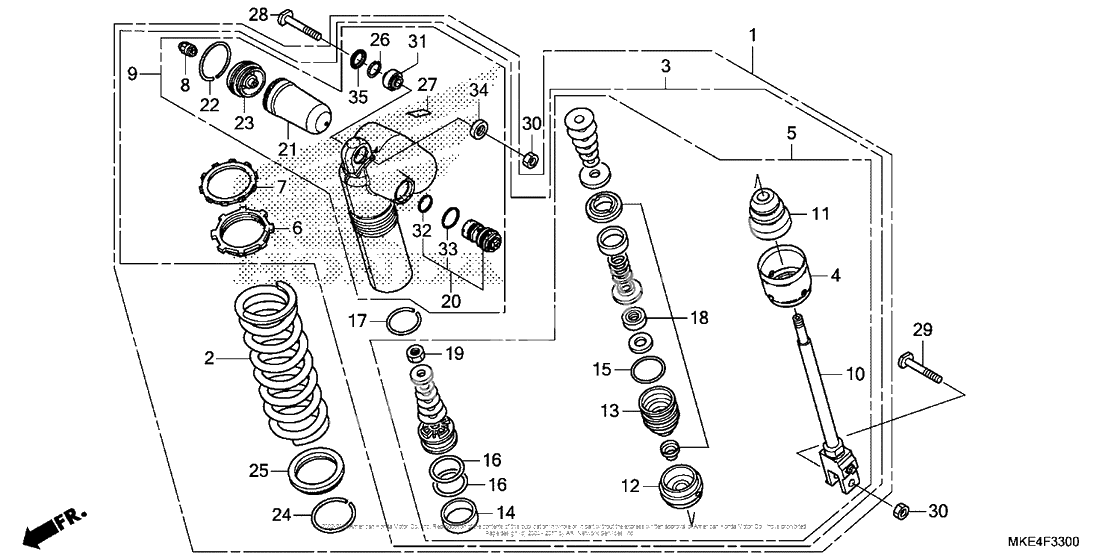

Задний амортизатор
Задний амортизатор
Cushion assy., rr. (Ref #1)
1
Part #52400-MKE-305
New Genuine Part (Ref #2)
2
Part #52401-KRN-A91
New Genuine Part (Ref #2)
2
Part #52402-KRN-A91
Spring, rr. (56n/mm) (Ref #2)
2
Part #52401-MKE-A01
Damper, rr. (Ref #3)
3
Part #52410-MKE-305
Stopper, spring seat (Ref #4)
4
Part #52419-MKE-A01
Rod, piston (Ref #5)
5
Part #52421-MKE-A01
Adjuster, spring (Ref #6)
6
Part #52422-KRN-A41
Nut, adjuster (Ref #7)
7
Part #52423-KRN-A41
Чашка воздушного клапана (Ref #8)
8
Part #52425-381-771
Case, damper (Ref #9)
9
Part #52425-MKE-A01
ROD (Ref #10)
10
Part #52426-MKE-A01
Rubber, stopper (Ref #11)
11
Part #52427-MEB-751
Plate, end (Ref #12)
12
Part #52428-KRN-711
Case, rod guide (Ref #13)
13
Part #52429-KRN-A41
Кольцо поршневое (Ref #14)
14
Part #52431-KZ3-J31
Прокладка (Ref #15)
15
Part #52434-KZ3-J21
Прокладка (Ref #16)
16
Part #52434-KZ3-J31
Кольцо (Ref #17)
17
Part #52435-KZ3-J21
Oil seal set (Ref #18)
18
Part #52436-KRN-A41
Nut, hex. (12mm) (Ref #19)
19
Part #52438-KA4-741
New Genuine Part (Ref #20)
20
Part #52440-KRN-A91
BLADDER (Ref #21)
21
Part #52451-KS7-831
Кольцо (Ref #22)
22
Part #52452-KS7-831
Cap, chamber (Ref #23)
23
Part #52453-KRN-711
Кольцо (Ref #24)
24
Part #52455-KZ3-J21
Пружина (Ref #25)
25
Part #52486-KZ3-J21
Кольцо (Ref #26)
26
Part #52487-KA4-831
Label, rr. (Ref #27)
27
Part #87516-KZ1-600
Bolt (upper) (10x53) (Ref #28)
28
Part #90152-MEB-750
Bolt (10x43.5) (Ref #29)
29
Part #90153-KZ4-710
Nut, u (10mm) (Ref #30)
30
Part #90306-KZ4-711
Bearing (10) (Ref #31)
31
Part #91074-MAC-741
Прокладка (Ref #32)
32
Part #91256-KZ3-731
Прокладка (Ref #33)
33
Part #91257-KZ3-891
Dust seal, shock (Ref #34)
34
Part #91351-KZ3-731
Кольцо (Ref #35)
35
Part #91351-MAC-671
