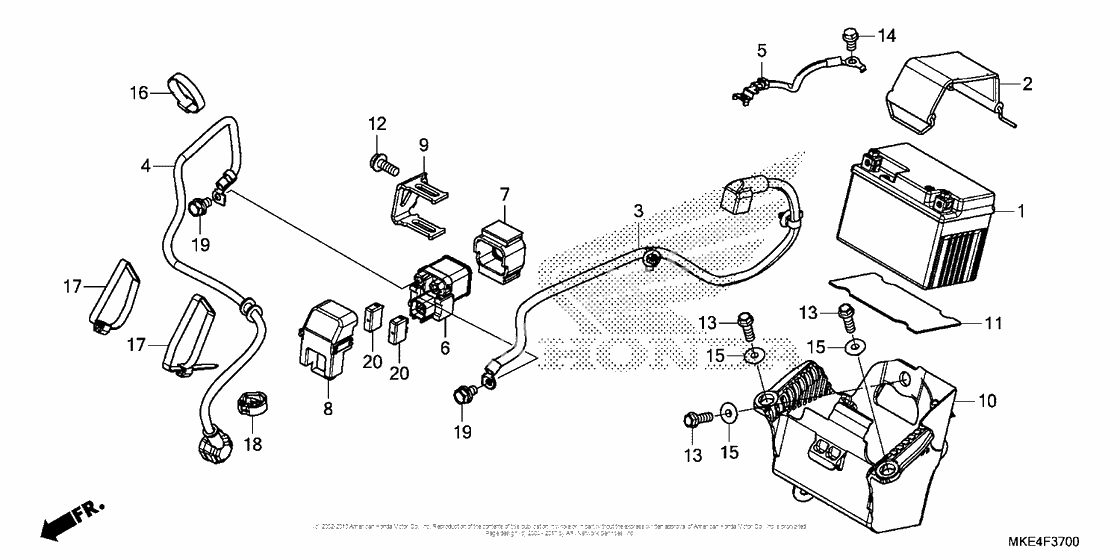

Аккумулятор
Аккумулятор
Аккумулятор (Ref #1)
1
Part #31500-GFC-782AH
Band, battery (Ref #2)
2
Part #31501-MKE-A10
Cable (Ref #3)
3
Part #32401-MKE-A10
Cable, starter motor (Ref #4)
4
Part #32410-MKE-A10
Cable (Ref #5)
5
Part #32601-MKE-A10
Switch (Ref #6)
6
Part #35851-MKE-A11
Rubber, shock (Ref #7)
7
Part #35856-MKE-A11
COVER (Ref #8)
8
Part #35857-MKE-A11
STAY (Ref #9)
9
Part #50221-MKE-A10
Box, battery (Ref #10)
10
Part #50325-MKE-A10
Rub, battery cushion (Ref #11)
11
Part #50326-MKE-A10
Bolt (6x16) (Ref #12)
12
Part #90011-MKE-A00
Bolt (6x18) (Ref #13)
13
Part #90105-MEN-A60
BOLT, FLANGE (6X10) (Ref #14)
14
Part #90129-MKE-A00
Collar a (Ref #15)
15
Part #90501-KZ4-J20
Band, wire, 165mm (black) (Ref #16)
16
Part #90651-KV6-003
BAND (Ref #17)
17
Part #90679-SG9-E01
Струбцина проводки (Ref #18)
18
Part #90690-MEF-800
Bolt-washer (Ref #19)
19
Part #93403-060-120-8
Fuse (Ref #20)
20
Part #98200-31000
