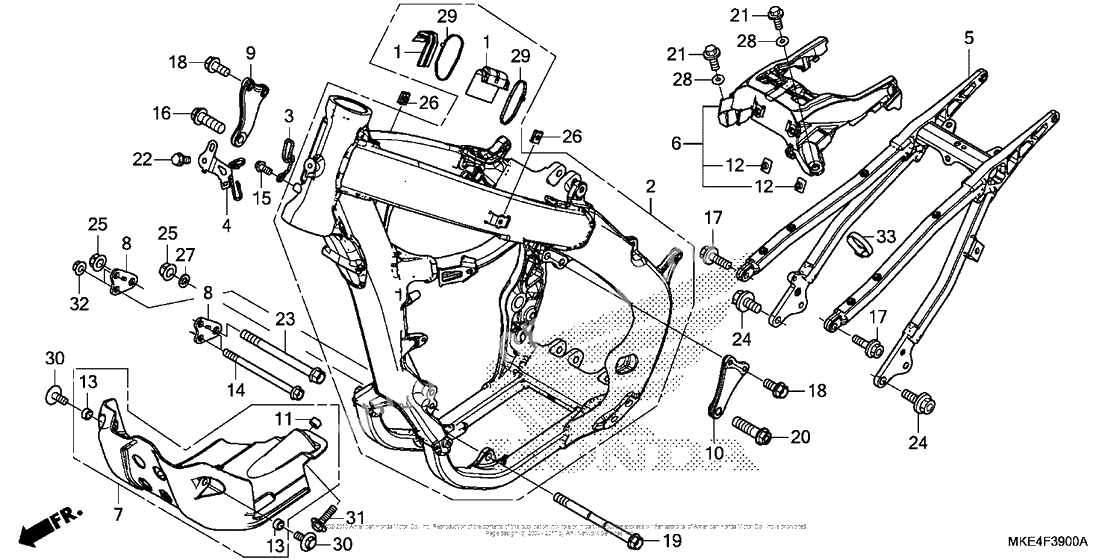

Рама
Рама
RUBBER (Ref #1)
1
Part #17522-MKE-A00
Frame set (Ref #2)
2
Part #50010-MKE-A10
Guide, cable (Ref #3)
3
Part #50128-MKE-A00
Stay, connector (Ref #4)
4
Part #50184-MKE-A00
FRAME, RR. (Ref #5)
5
Part #50200-MKE-A00
BASE, SEAT SUPPORT (Ref #6)
6
Part #50250-MKE-A00
Guard, engine (Ref #7)
7
Part #50357-MKE-A00
Plate, fr. eng hgr (Ref #8)
8
Part #50405-MKE-A00
PLATE, R. (Ref #9)
9
Part #50407-MKE-A10
PLATE, L. (Ref #10)
10
Part #50408-MKE-A10
Collar b, fr. fender (Ref #11)
11
Part #61103-MGS-D30
Гайка (Ref #12)
12
Part #61304-GFC-900
Collar, mudguard (Ref #13)
13
Part #80123-MA1-640
Болт (Ref #14)
14
Part #90101-MEN-A30
Bolt (6x12) (Ref #15)
15
Part #90101-MEN-A60
Болт (Ref #16)
16
Part #90102-MEN-A30
BOLT, FLANGE (8X28) (Ref #17)
17
Part #90102-MKE-A00
Болт (Ref #18)
18
Part #90103-MEB-670
BOLT (10X134) (Ref #19)
19
Part #90104-MKE-A00
Болт (Ref #20)
20
Part #90105-MEN-A30
Bolt (6x18) (Ref #21)
21
Part #90105-MEN-A60
BOLT, FLANGE (7X14) (Ref #22)
22
Part #90105-MKE-A00
Bolt, flg (10x123) (Ref #23)
23
Part #90106-MEN-A30
Bolt (10x24) (Ref #24)
24
Part #90122-MEN-730
Nut, u flange (10mm) (Ref #25)
25
Part #90302-KZ3-J40
Nut, clip (6mm) (Ref #26)
26
Part #90303-MGZ-J40
Шайба (Ref #27)
27
Part #90410-HC4-000
Collar a (Ref #28)
28
Part #90501-KZ4-J20
Ty-rap, cable (Ref #29)
29
Part #91560-MS8-600
Bolt-washer (Ref #30)
30
Part #93404-060-160-7
Bolt-washer (Ref #31)
31
Part #93404-060-250-7
Гайка (Ref #32)
32
Part #94050-08000
Band, wire, 165mm (black) (Ref #33)
33
Part #90651-KV6-003
