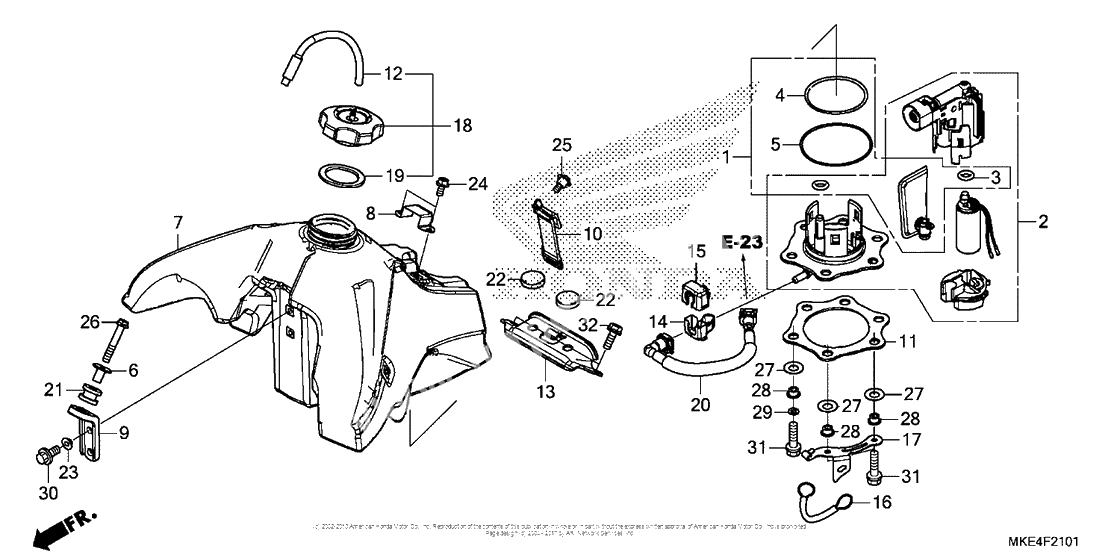

Fuel tank (2)
Fuel tank (2)
Filter kit, fuel (Ref #1)
1
Part #06160-MEN-A50
Pump assy., fuel (Ref #2)
2
Part #16700-MEN-A52
Прокладка (Ref #3)
3
Part #16702-KPC-D50
Прокладка (Ref #4)
4
Part #16711-MEN-A30
Прокладка (Ref #5)
5
Part #16712-MEN-A30
Colr (6.3x10.5x17.5) (Ref #6)
6
Part #17509-KZ3-B00
Tank, fuel (Ref #7)
7
Part #17510-MKE-A10
STAY, SEAT HOOK (Ref #8)
8
Part #17513-MKE-A10
Stay, fr. fuel tank (Ref #9)
9
Part #17516-MKE-A10
Band, rr. tank (Ref #10)
10
Part #17517-MKE-A10
Пластина топливного насоса (Ref #11)
11
Part #17519-MEN-A30
TUBE (Ref #12)
12
Part #17521-MEN-A30
Stay, rr. tank (Ref #13)
13
Part #17525-MKE-A10
New Genuine Part (Ref #14)
14
Part #17575-KRN-A90
New Genuine Part (Ref #15)
15
Part #17576-KRN-A90
Cable (Ref #16)
16
Part #17577-MEN-A30
Guide, stopper cable (Ref #17)
17
Part #17578-MKE-A11
Cap assy., fuel tank (Ref #18)
18
Part #17620-MEN-A30
Gasket, fuel cap (Ref #19)
19
Part #17624-KT1-780
Hose, fuel feed (Ref #20)
20
Part #17630-MKE-A01
Rubber, muffler (Ref #21)
21
Part #18334-ML3-680
Rubber, seat stopper (Ref #22)
22
Part #77211-965-000
COLLAR (Ref #23)
23
Part #84706-415-000
Bolt, flange, 5x10 (Ref #24)
24
Part #90002-892-000
Screw (5x12) (Ref #25)
25
Part #90105-MEN-730
Bolt (6x30) (Ref #26)
26
Part #90108-MEN-A60
Шайба (Ref #27)
27
Part #90502-MEN-A30
Collar, fuel pump (Ref #28)
28
Part #90504-MKE-A00
Шайба (Ref #29)
29
Part #94101-06800
BOLT (Ref #30)
30
Part #96001-060-160-0
BOLT (Ref #31)
31
Part #96001-060-200-0
Болт (Ref #32)
32
Part #96300-0601600
