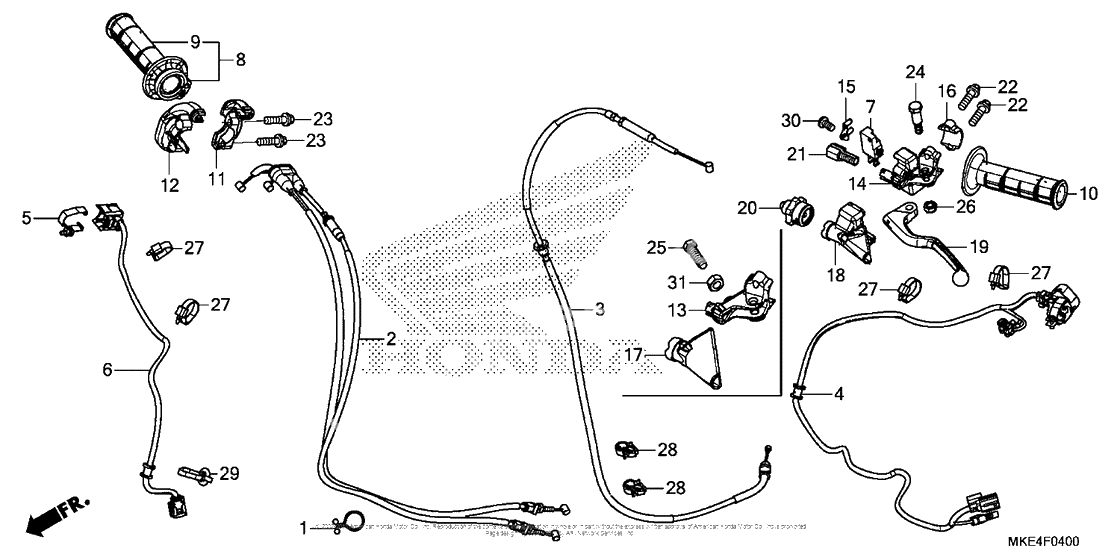

Ручка руля & Пульт управления рулевой & Тросики
Ручка руля & Пульт управления рулевой & Тросики
Tube, breather (Ref #1)
1
Part #17233-KCZ-J20
Cable, throttle (Ref #2)
2
Part #17910-MKE-A01
Тросик сцепления (Ref #3)
3
Part #22870-MKE-A11
Band set (Ref #5)
5
Part #35151-MKE-A11
SWITCH SET, STARTER (Ref #6)
6
Part #35155-MKE-A12
Switch assy., fr. stop (tateishi) (Ref #7)
7
Part #35340-HR0-305
Зажим дросселя (Ref #8)
8
Part #53140-MEN-305
Grip, r. handle (Ref #9)
9
Part #53165-MEN-305
Grip, l, handle (Ref #10)
10
Part #53166-MEN-305
Housing, throttle (Ref #11)
11
Part #53167-MKE-A00
Housing, throttle (Ref #12)
12
Part #53168-MKE-A00
BRACKET, L. (Ref #14)
14
Part #53172-MKE-A10
Plate, clutch switch (Ref #15)
15
Part #53173-KSC-000
Holder, l (Ref #16)
16
Part #53174-KCE-670
Cvr, l. handle lever (Ref #18)
18
Part #53177-MKE-A10
Lever, l, handlebar (Ref #19)
19
Part #53178-MEN-305
Выключатель кнопочный trip counter (Ref #20)
20
Part #53179-MEN-671
Bolt, wire adjusting (Ref #21)
21
Part #53192-MEN-670
Bolt (6x22) (Ref #22)
22
Part #90102-MEN-A60
BOLT 6X20 (Ref #23)
23
Part #90106-KRN-A90
BOLT (Ref #24)
24
Part #90113-429-770
Nut, u, 6mm (Ref #26)
26
Part #90301-782-000
BAND (Ref #27)
27
Part #90650-KV6-003
Clip, cable (Ref #28)
28
Part #90682-MKE-A01
CLIP (Ref #29)
29
Part #91540-S7S-003
Болт (Ref #30)
30
Part #93500-050-100-A
