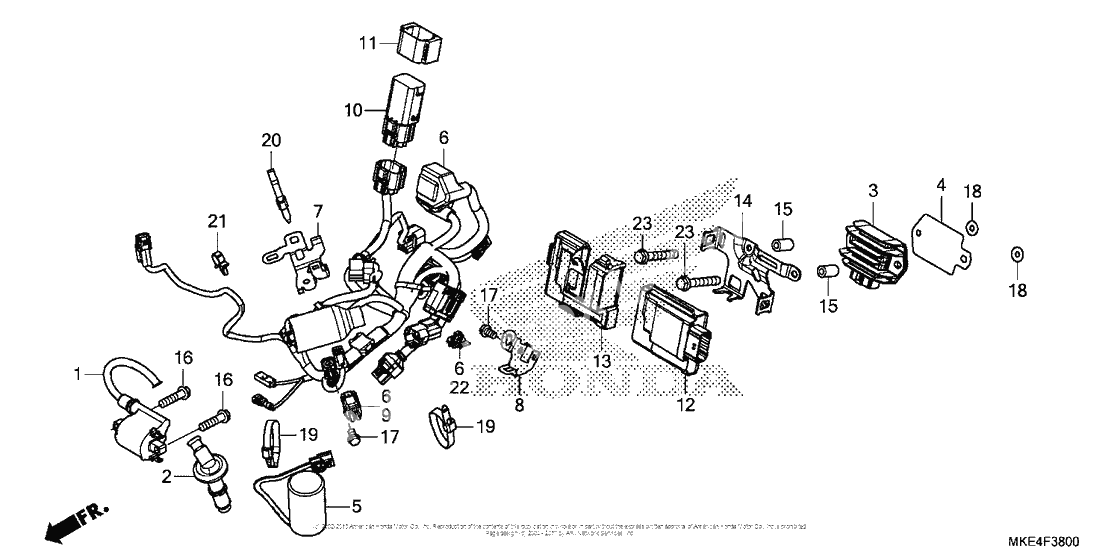

Электрооборудование
Электрооборудование
Coil assy., ignition (Ref #1)
1
Part #30500-MKE-A01
Cap assy. (Ref #2)
2
Part #30700-MKE-A01
New Genuine Part (Ref #3)
3
Part #31600-KZL-931
Back plate (Ref #4)
4
Part #31610-MKE-A00
Condenser unit (Ref #5)
5
Part #31700-MKE-A01
Wire harness (Ref #6)
6
Part #32100-MKE-A10
Stay, l. connector (Ref #7)
7
Part #32110-MKE-A00
Stay, harness (Ref #8)
8
Part #32125-MKE-A00
CAP (WPC 4P 090 M) (Ref #9)
9
Part #32606-K44-V01
RELAY (2P) (Ref #10)
10
Part #38580-MKE-A11
Cushion, relay (Ref #11)
11
Part #38585-MKE-A11
Pgm-fi unit (Ref #12)
12
Part #38770-MKE-A13
Suspension (Ref #13)
13
Part #38771-MKE-A00
Bracket, ecu (Ref #14)
14
Part #50124-MKE-A00
COLLAR, ECU BRACKET (Ref #15)
15
Part #50125-MKE-A00
Bolt (6x25) (Ref #16)
16
Part #90109-MEN-A70
BOLT, FLANGE (6X10) (Ref #17)
17
Part #90129-MKE-A00
WASHER (6.1MM) (Ref #18)
18
Part #90535-MKE-A00
Band.harness (Ref #19)
19
Part #90650-MA6-720
Band, wire, 165mm (black) (Ref #20)
20
Part #90651-KV6-003
Clip, wire harness (Ref #21)
21
Part #90659-MKE-A11
CLIP (Ref #22)
22
Part #91535-TA0-003
Bolt,flange,sh 6x (Ref #23)
23
Part #96001-060-380-0
