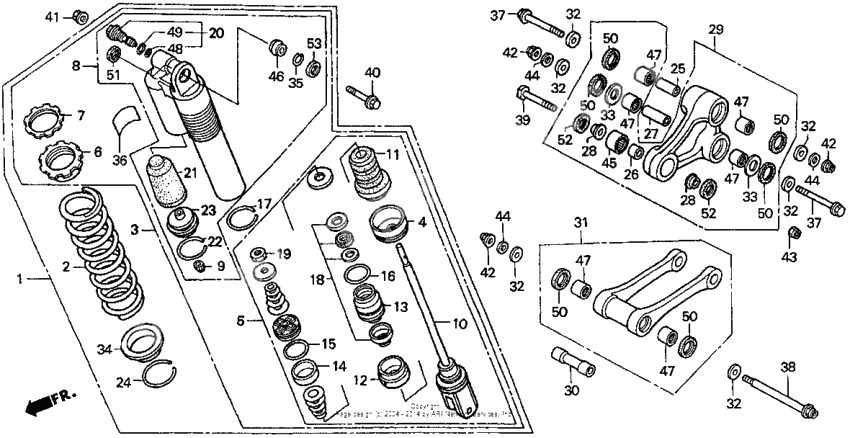

Rear shock absorber 98-99
Rear shock absorber 98-99
Cushion assy., rr. (Ref #1)
1
Part #52400-KZ3-A81
Пружина (Ref #2)
2
Part #52403-KZ3-A71
Пружина (Ref #2)
2
Part #52402-KZ3-A71
Пружина (Ref #2)
2
Part #52401-KZ3-A71
Spring, rr. (Ref #2)
2
Part #52404-KZ3-A71
Damper, rr. (Ref #3)
3
Part #52410-KZ3-A81
Stopper, spring seat (Ref #4)
4
Part #52419-KZ3-A71
Rod, piston (Ref #5)
5
Part #52421-KZ3-A81
Adjuster, spring (Ref #6)
6
Part #52422-KS7-701
Nut, adjuster (Ref #7)
7
Part #52423-KS7-701
Case, shock absorber (Ref #8)
8
Part #52425-KZ3-A71
Чашка воздушного клапана (Ref #9)
9
Part #52425-169-003
ROD (Ref #10)
10
Part #52426-KZ3-A81
Rubber, stopper (Ref #11)
11
Part #52427-KZ3-891
Plate, end (Ref #12)
12
Part #52428-KZ3-B01
Case, rod guide (Ref #13)
13
Part #52429-KZ3-A81
Кольцо поршневое (Ref #14)
14
Part #52431-KZ3-B01
Прокладка (Ref #15)
15
Part #52432-KZ3-861
Прокладка (Ref #16)
16
Part #52434-KZ3-861
Кольцо (Ref #17)
17
Part #52435-KZ3-861
Oil seal set (Ref #18)
18
Part #52436-KZ3-305
Nut, hex. (12mm) (Ref #19)
19
Part #52438-KA4-741
Регулятор (Ref #20)
20
Part #52440-KZ3-A71
BLADDER (Ref #21)
21
Part #52451-KZ3-891
Кольцо (Ref #22)
22
Part #52452-KS7-831
Cap, chamber (Ref #23)
23
Part #52453-KS7-831
Кольцо (Ref #24)
24
Part #52455-MM5-003
Collar c, shock arm (Ref #25)
25
Part #52463-KZ3-B00
Collar d, shock (Ref #26)
26
Part #52463-KZ4-B00
Collar b, shock arm (Ref #27)
27
Part #52464-KZ3-J00
Collar d, shock side (Ref #28)
28
Part #52464-KZ4-B00
Collar d, shock side (Ref #28)
28
Part #52464-KZ4-B00
Collar d, shock side (Ref #28)
28
Part #52464-KZ4-B00
Collar d, shock side (Ref #28)
28
Part #52464-KZ4-B00
Arm sub-assy. (Ref #29)
29
Part #52465-KZ3-J10
Collar, conn rod (Ref #30)
30
Part #52473-KZ3-J00
Rod sub-assy. (Ref #31)
31
Part #52475-KZ3-J10
Шайба упорная (Ref #33)
33
Part #52476-KZ3-860
Шайба упорная (Ref #33)
33
Part #52476-KZ3-860
Шайба упорная (Ref #33)
33
Part #52476-KZ3-860
Шайба упорная (Ref #33)
33
Part #52476-KZ3-860
Пружина (Ref #34)
34
Part #52486-KZ3-003
Кольцо (Ref #35)
35
Part #52487-KA4-831
Label, rr. (Ref #36)
36
Part #87516-KZ1-600
Bolt, link (15x96) (Ref #37)
37
Part #90130-KZ3-B00
Bolt, link (15x96) (Ref #37)
37
Part #90130-KZ3-B00
Bolt, link (15x96) (Ref #37)
37
Part #90130-KZ3-B00
Bolt, link (15x96) (Ref #37)
37
Part #90130-KZ3-B00
Bolt, link (15x132) (Ref #38)
38
Part #90131-KZ3-J00
Bolt (10x43.5) (Ref #39)
39
Part #90153-KZ4-710
Болт (Ref #40)
40
Part #90153-KK0-000
Nut, u, 10mm (Ref #41)
41
Part #90304-GE8-003
Nut, u (10mm) (Ref #43)
43
Part #90306-KZ4-711
Bearing (19x26x15) (Ref #45)
45
Part #91074-KZ4-B01
Bearing (10) (Ref #46)
46
Part #91074-MAC-741
Прокладка (Ref #48)
48
Part #91256-KZ3-731
Прокладка (Ref #49)
49
Part #91257-KZ3-891
Dust seal, shock (Ref #51)
51
Part #91351-KZ3-731
Dust seal (17x26x3) (Ref #52)
52
Part #91351-KZ4-B01
Dust seal (17x26x3) (Ref #52)
52
Part #91351-KZ4-B01
Dust seal (17x26x3) (Ref #52)
52
Part #91351-KZ4-B01
Dust seal (17x26x3) (Ref #52)
52
Part #91351-KZ4-B01
Кольцо (Ref #53)
53
Part #91351-MAC-671
