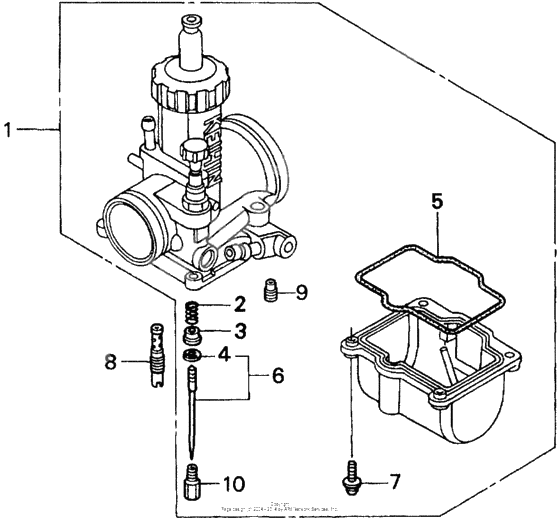

Carburetor optional kit 97-98
Carburetor optional kit 97-98
Пружина (Ref #2)
2
Part #16051-KA3-761
Colr, spring setting (Ref #3)
3
Part #16066-KA3-761
Clip, bar (Ref #4)
4
Part #16115-GHB-610
Прокладка (Ref #5)
5
Part #16163-KZ3-B10
Ndl, jet (r1372ms) (Ref #6)
6
Part #16204-KZ3-B10
Ndl, jet (r1371ms) (Ref #6)
6
Part #16205-KZ3-880
Ndl, jet (r1370ms) (Ref #6)
6
Part #16204-KZ3-690
Ndl, jet (r1367ms) (Ref #6)
6
Part #16202-KZ3-690
Ndl, jet (r1366ms) (Ref #6)
6
Part #16201-KZ3-690
Ndl, jet (r1368ms) (Ref #6)
6
Part #16012-KZ3-690
Screw,washer 4x12 (Ref #7)
7
Part #93892-040-160-8
Жиклер (Ref #8)
8
Part #99103-KA30580
Жиклер (Ref #8)
8
Part #99103-KA30600
Жиклер (Ref #8)
8
Part #99103-4400500
Жиклер (Ref #8)
8
Part #99103-4400520
Jet, power (#48) (Ref #9)
9
Part #99105-KZ30480
Jet, power (#38) (Ref #9)
9
Part #99105-KZ30380
Jet, main (#178) (Ref #10)
10
Part #99113-GHB1780
Jet, main (#180) (Ref #10)
10
Part #99113-GHB1800
Jet, main (#172) (Ref #10)
10
Part #99113-GHB1720
Jet, main (#185) (Ref #10)
10
Part #99113-GHB1850
Jet, main (#182) (Ref #10)
10
Part #99113-GHB1820
Jet, main (#170) (Ref #10)
10
Part #99113-GHB1700
Jet, main (#165) (Ref #10)
10
Part #99113-GHB1650
Jet, main (#168) (Ref #10)
10
Part #99113-GHB1680
